BEYMA PRO6CFNd - NEODYMIUM 6.5" EXTENDED RANGE SPEAKER
|
|
|
BEYMA PRO6CFNd - NEODYMIUM 6.5" EXTENDED RANGE SPEAKER |
|
THE BEYMA PRO6CFNd COVERS A WIDE FREQUNCY RANGE WITH GOOD POWER HANDLING OF 400 WATTS PROGRAM! |
|
|
|
BEYMA PRO6CFNd |
|
Item Price: $319.95 |
|
|
WOOFER MODEL - PRO6CFNd |
|
|
Specifications |
|
|
Nominal Basket Diameter |
6.5" / 165mm |
|
Impedance |
5 ohms |
|
AES Power Rating |
200 Watts |
| Program Power | 400 Watts |
|
Frequency Response |
95Hz - 11.2KHz |
|
Sensitivity (1W/1m) |
93dB |
|
Voice Coil Diameter |
2" / 50.8mm |
| Voice Coil Length | 14mm |
| Air Gap Height | 7mm |
| X Damage (peak to peak) | 20mm |
| Bl Factor (BL) | 11.1 N/A |
| Mounting Information | |
| Overall Diameter | 6.8" / 174mm |
| Bolt Circle Diameter | 6.2" / 158mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 5.7" / 145mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 3.8" / 96mm |
| Net Weight | 4.2 lb. / 1.9 kg. |
| Shipping Weight | 4.4 lb. / 2.0 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Carbon Fiber |
| Surround | Treated Cloth |
| Dust Cap Shape | Inverted |
| Voice Coil | Copper |
| Former | Fiberglass |
| Metal Parts | Marine Treated |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 94 Hz |
| Impedance (Re) | 4.8 ohms |
| Coil Inductance (Le) | .2 mH |
| Mechanical Q (Qms) | 3.8 |
| Electrical Factor (Qes) | .43 |
| Total Q (Qts) | .39 |
| Comp. Equivalent Vol. (Vas) | .14 ft3 / 3.9Liters |
| Voice Coil Overhang (Xmax) | 6.0 mm |
| Surface Area of Cone (Sd)m2 | 0.014m2 |
| Moving Mass (Mms) | 19 Grams |
| Reference Efficiency | .7% |
| Displacement Volume | 74 cm3 |
|

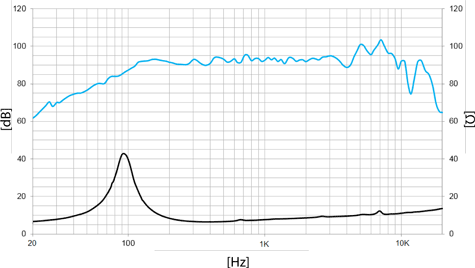

FREQUENCY RESPONSE & IMPEDANCE CURVE |
|
|
|
|
|

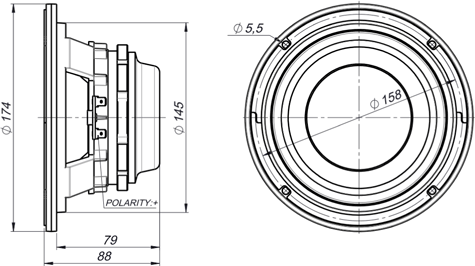

MOUNTING INFORMATION |
|
 |
|
