BEYMA PRO8WFE - 4 OHM 8" LOW FREQUENCY SPEAKER
|
|
|
BEYMA PRO8WFE - 4 OHM 8" LOW FREQUENCY SPEAKER |
|
BEYMA PRO8WFE HAS CLEAN LOUD MID-BASS SOUND WITH 500 WATTS POWER HANDLING! |
|
|
|
BEYMA Pro8WFe |
|
4 Ohms
Item Price: $219.99 |
|
|
WOOFER MODEL - Pro8WFe |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
4 ohms |
|
AES
Power Rating |
250
Watts |
| Program Power |
500
Watts |
|
Frequency
Response |
80Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
94dB |
|
Voice
Coil Diameter |
2.5"
/ 63.5mm |
| Voice Coil Length | 16 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 23 mm |
| BL Factor | 10.3 N/A |
|
Mounting Information |
|
|
Overall Diameter |
8.35" / 212mm |
| Bolt Circle Diameter |
7.8"
/ 198mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 7.125" / 181mm |
| - Rear Mount | 7.125" / 181mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.05 ft3 / 2 Liters |
|
Overall
Depth |
3.78"
/ 96mm |
|
Net
Weight |
7.26 lb. / 3.3 kg. |
| Shipping Weight | 7.6 lb. / 3.45 kg. |
|
Materials |
|
| Basket | Die-Cast Aluminum |
| Cone | Treated Paper |
| Spider | Treated Cotton Fiber |
| Surround | Treated Cloth |
| Voice Coil | Aluminum Wire |
| Former | Fiber Glass |
| Metal Parts | Anti-Corrosion |
| Magnet | e Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 76 Hz |
| Impedance (Re) | 3.1 ohms |
| Coil Inductance (Le) | .4 mH |
| Mechanical Q (Qms) | 3.2 |
| Electrical Factor (Qes) | .39 |
| Total Q (Qts) | .35 |
| Comp. Equivelant Vol. (Vas) | .38 ft3 / 10.7 Liters |
| Voice Coil Overhang (Xmax) | 6.5 mm |
| Surface Area of Cone (Sd)m2 | 0.0220m2 |
| Diaphragm Mass (Mms) | 27 Grams |
| Reference Efficiency | 1.2% |
| Displacement Volume (Vd) | 143 cm3 |
|

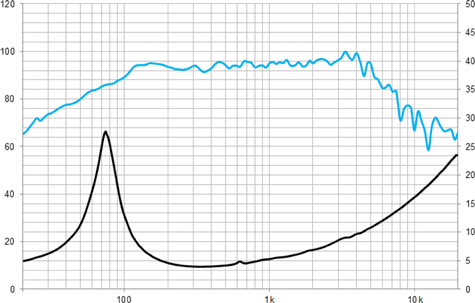

Frequency Response & Impedance Curve |
|
|
|
|
|

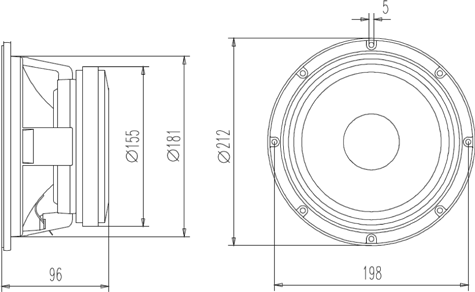

Mounting Dimensions |
|
|
|
|
