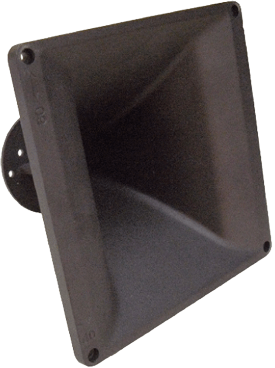

TD-164 - 1" 60°x 40° Constant Directivity Horn
|
|
|
TD-164 - 1" 60°x 40° Constant Directivity Horn |
|
SMOOTH RESPONSE FROM THIS HIGH QUALITY CONSTRUCTED CAST ALUMINUM 1" HORN! |
|
 |
 Item Price: $99.95 |
| HORN MODEL | BEYMA TD-164 |
|
SPECIFICATIONS |
|
|
Type |
Constant
Directivity |
|
Throat
Size |
1"
/ 25mm |
|
Dispersion |
60°x
40° |
|
Lowest
Rec. Crossover |
1200Hz |
| Construction | Cast Aluminum |
|
Net Weight |
2.2
lbs. / 1.0kg |
|
MOUNTING INFORMATION |
|
| Overall Width | 7.95" / 202mm |
| Overall Height |
7.95" / 202mm |
| Overall Depth | 5.7" / 145mm |
|
Cutout
Width |
6.97" / 177mm |
| Cutout Height | 5.59" / 142mm |
| Mounting Type | Bolt On |
| 3 Holes Equally Spaced On Diameter | 2.24" / 57 mm |
|

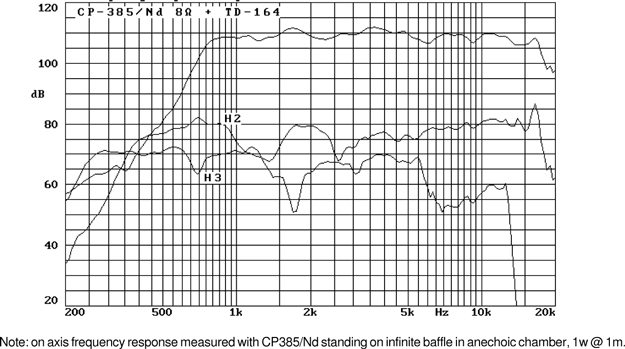

FREQUENCY RESPONSE GRAPH |
|
|
|
|
|
DIRECTIVITY |
|
|
|
|
|
BEAMWIDTH |
|
|
|
|
