TD-164P - 1" 60°x 40° Constant Directivity Horn
|
|
|
TD-164P - 1" 60°x 40° Constant Directivity Horn |
|
THE BEYMA TD-164P HAS A PRECISE CONTROL PATTERN OF 60°H x 40°V AND IS ROTATABLE! |
|
 |
 Item Price: $33.95 |
| HORN MODEL | BEYMA TD-164P |
|
SPECIFICATIONS |
|
|
Type |
Constant
Directivity |
|
Throat
Size |
1"
/ 25mm |
|
Dispersion |
60°x
40° |
|
Lowest
Rec. Crossover |
1500Hz |
| Directivity Index (DI) | 10.5dB |
| Construction | Reinforced Polycarbonate |
|
Net Weight |
.62
lbs. / .28kg |
| Shipping Weight |
1.06
lbs. / .48kg |
|
MOUNTING INFORMATION |
|
| Overall Width | 6.3" / 160mm |
| Overall Height |
6.3" / 160mm |
| Overall Depth | 3.6" / 100mm |
|
Cutout
Width |
5.48" / 139mm |
| Cutout Height | 5.48" / 139mm |
| Mounting Type | Bolt On |
| (3) M5 Holes Equally Spaced On Diameter | 120° Apart On A 2.24" / 57mm Diameter |
| (4) M5 Holes Equally Spaced On Diameter | 90° Apart On A 3" / 76.3mm Diameter |
|

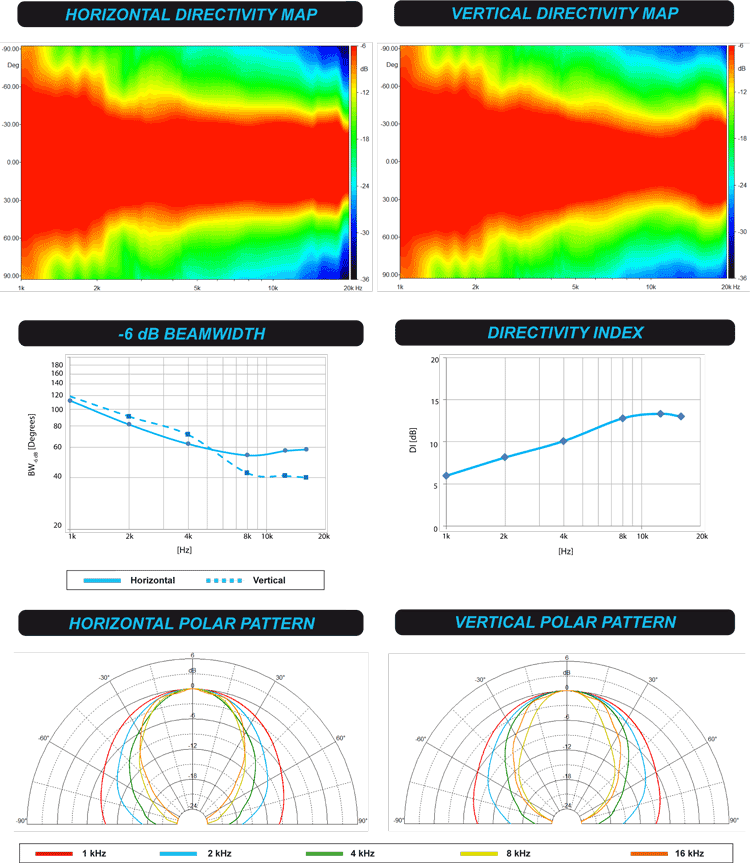

DIRECTIVITY / BEAMWIDTH / POLAR RESPONSE |
|
|
|
|
|

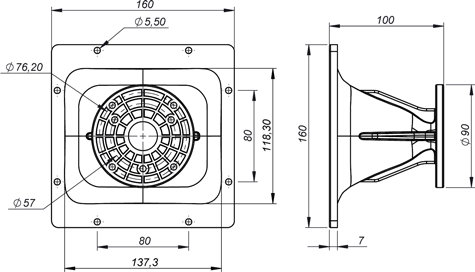

DRAWING |
|
|
|
|
