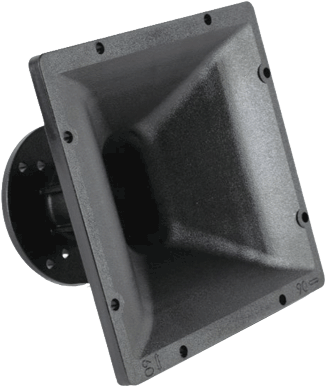

TD-196P - 1" 90°x 60° Constant Directivity Horn
|
|
|
TD-196P - 1" 90°x 60° Constant Directivity Horn |
|
THE BEYMA TD-196P HAS A PRECISE CONTROL PATTERN OF 90°H x 60°V AND IS ROTATABLE! |
|
 |
 Item Price: $33.95 |
| HORN MODEL | BEYMA TD-196P |
|
SPECIFICATIONS |
|
|
Type |
Constant
Directivity |
|
Throat
Size |
1"
/ 25mm |
|
Dispersion |
90°H x
60° |
|
Lowest
Rec. Crossover |
1500Hz |
| Directivity Index (DI) | 8.8dB |
| Construction | Reinforced Polycarbonate |
|
Net Weight |
.62
lbs. / .28kg |
| Shipping Weight |
1.06
lbs. / .48kg |
|
MOUNTING INFORMATION |
|
| Overall Width | 6.3" / 160mm |
| Overall Height |
6.3" / 160mm |
| Overall Depth | 3.9" / 100mm |
|
Cutout
Width |
5.48" / 139mm |
| Cutout Height | 5.48" / 139mm |
| Mounting Type | Bolt On |
| (3) M5 Holes Equally Spaced On Diameter | 120° Apart On A 2.24" / 57mm Diameter |
| (4) M5 Holes Equally Spaced On Diameter | 90° Apart On A 3" / 76.3mm Diameter |
|

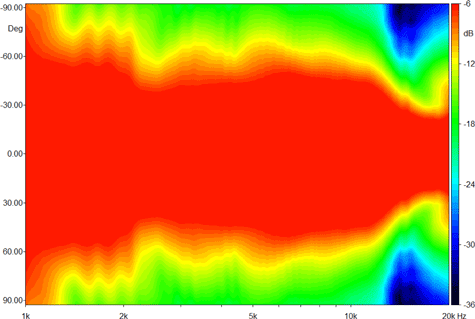

HORIZONTAL DIRECTIVITY |
|
|
|
|
|

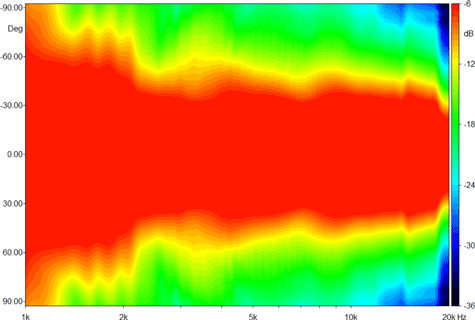

VERTICAL DIRECTIVITY |
|
|
|
|
|

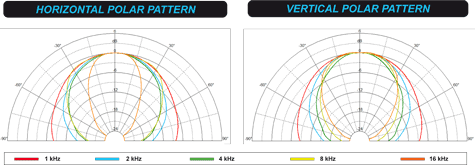

POLAR PATTERN RESPONSE |
|
|
|
|
|

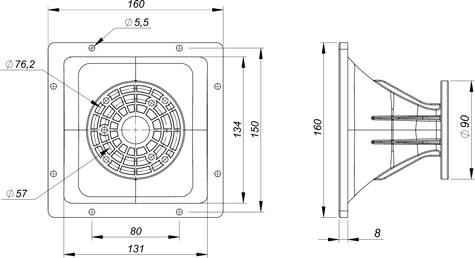

MOUNTING DIMENSIONS |
|
|
|
|
|

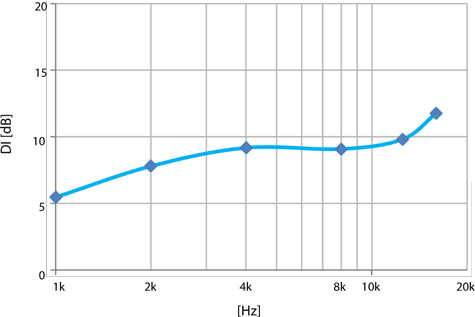

DIRECTIVITY |
|
|
|
|
|

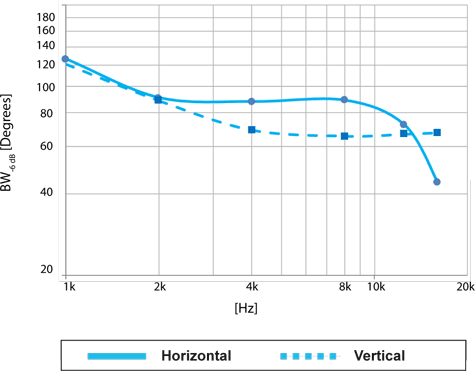

-6DB BEAMWIDTH |
|
|
|
|
