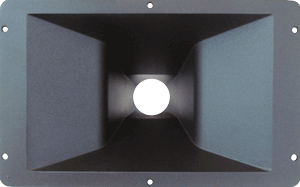

BEYMA TD-372DB - 2" HORN - 60°x 40°
|
|
|
BEYMA TD-372DB - 2" HORN - 60°x 40° |
|
WARM NATURAL SOUND FROM THIS WELL DESIGNED CAST ALUMINUM 2" BEYMA HORN! |
|
|
|
|
|
HORN
MODEL |
BEYMA TD-372DB |
|
SPECIFICATIONS |
|
|
Type |
Constant
Directivity |
|
Throat
Size |
2"
/ 50mm |
|
Dispersion |
60°x
40° |
|
Lowest
Rec. Crossover |
1kHz |
| Construction | Cast Aluminum |
| Finish | Black Sandblast |
|
Net Weight |
2.99
lbs. / 1.36kg |
|
MOUNTING INFORMATION |
|
|
Overall
Width |
12" / 305mm |
| Overall Height | 7.44" / 189mm |
| Overall Depth | 5.51" / 140mm |
| Cutout Width | 9.5" / 241mm |
| Cutout Height | 6.44" / 164mm |
| Mounting Type | Bolt On |
| 4 Holes Equally Spaced On Dia. | 4" / 101mm |
|

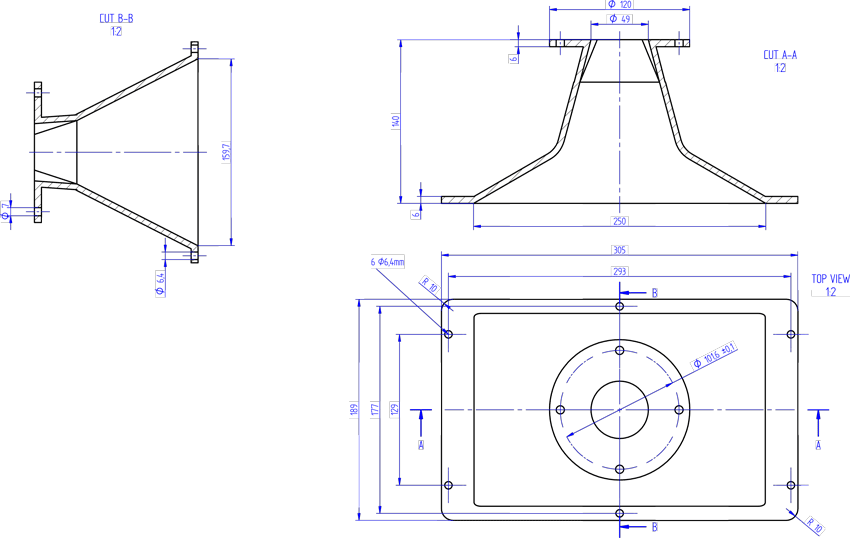

HORN DRAWING |
|
|
|
|
