BEYMA TD-460/N - 2" 60°x 40° HORN
|
|
|
BEYMA TD-460/N - 2" 60°x 40° HORN |
| QUALITY BEYMA HORN THAT DELIVERS NATURAL SOUND REPRODUCTION! | |
|
|
Item Price: $223.50 |
|
HORN
MODEL |
BEYMA TD-460/N |
|
Specifications |
|
|
Type |
Constant
Directivity |
|
Throat
Size |
2"
/ 49mm |
|
Dispersion |
60°x
40° |
|
Lowest
Rec. Crossover |
800Hz |
| Construction | Rigid Polyurethane Foam |
|
Net Weight |
4.4
lbs. / 2.0kg |
|
Dimensions |
|
| Overall Width | 16.54" / 420mm |
|
Overall
Height |
10.63" / 270mm |
| Overall Depth | 8.94" / 227mm |
| Cutout Width | 14.37" / 365mm |
| Cutout Height | 9.25" / 235mm |
| Mounting Type | Bolt On |
| 4 Holes Equally Spaced On Diameter | 4" / 101mm |
|

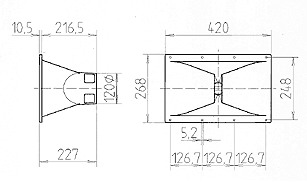

HORN DRAWING |
|
|
|
|
