BEYMA AST09 - 1" H.F. BULLET TWEETER
|
|
|
BEYMA AST09 - 1" H.F. BULLET TWEETER |
|
NICE ATTRACTIVE ALUMINUM FINISH & A LOUD CLEAN HIGH FREQUENCIES! |
|
|
|
BEYMA AST09 |
|
Item Price: $174.95/each |
|
|
SUPERTWEETER MODEL |
AST09 |
|
Specifications |
|
|
Impedance |
4 ohms |
|
AES
Power Rating |
35 Watts |
| Program Power | 70 Watts |
| Maximum Power | 150 Watts |
|
Sensitivity
(1W/1m) |
107dB 1w @ 1m |
|
Frequency
Response |
2.5kHz
- 22kHz |
| Recommended Crossover | 5.0 kHz or higher @ 12dB/oct. |
| Resonant Frequency | 6.0kHz |
| Voice Coil Diameter |
1.02"
/ 25.8mm |
|
Mounting Information |
|
| Overall Diameter | 3.5" / 89mm |
| Overall Depth | 3.35" / 85mm |
| Baffle Cutout Dimensions | 2.84" / 72mm |
| Bolt Circle Diameter | 3.15" / 80mm |
|
Materials |
|
| Diaphragm | Aluminum |
| Cover | Aluminum |
| Magnet | Ferrite |

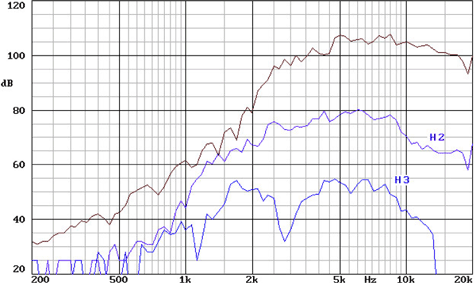

| Frequency Response & Distortion Graph | |
 |
|

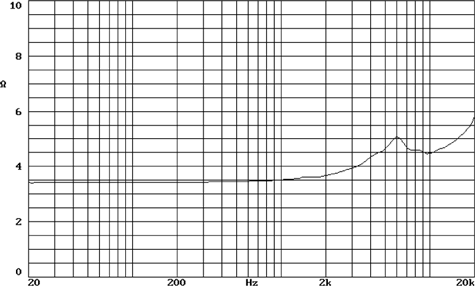

| Impedance Curve | |
 |
|

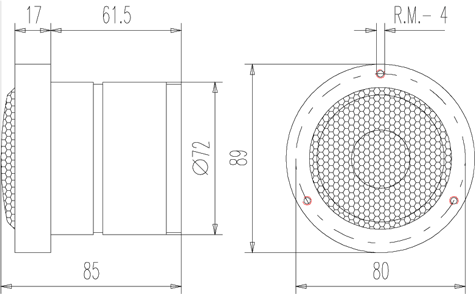

| Dimensional Drawing | |
 |
|
