BEYMA AST22 - 1" H.F. BULLET TWEETER
|
|
|
BEYMA AST22 - 1" H.F. BULLET TWEETER |
|
VERY SMOOTH WARM HIGHS IN AN ATTRACTIVE BRUSHED ALUMINUM FINISH! |
|
|
|
BEYMA AST22 |
|
Item Price: $148.95/Each |
|
|
H.F. DRIVER MODEL |
AST |
|
Specifications |
|
|
Impedance |
4 ohms |
|
AES
Power Rating |
25 Watts |
| Program Power | 50 Watts |
| Maximum Power | 100 Watts |
|
Sensitivity
(1W/1m) |
107dB 1w @ 1m |
|
Frequency
Response |
4kHz - 20kHz |
| Recommended Crossover | 5.0 kHz or higher |
| Dispersion (H x V) |
40° |
| Voice Coil Diameter |
1.5"
/ 37.6mm |
|
Mounting Information |
|
| Overall Diameter |
4.06" x 4.06"
/ 103mm |
| Overall Depth | 2.8" / 71mm |
| Baffle Cutout Dimensions | 3.62" / 92mm |
| Bolt Circle Diameter | 4.21" / 107mm |
| Net Weight | 3.5 lb. / 1.6 kg. |
| Shipping Weight | 3.67 lb. / 1.67 kg. |
|
Materials |
|
| Diaphragm | Aluminum |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |
|

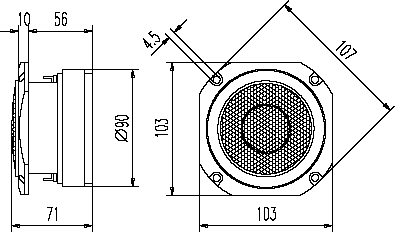

Dimensional Drawing |
|
 |
|

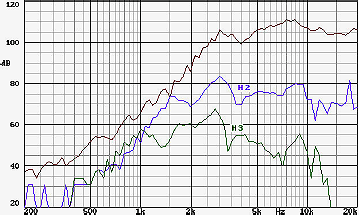

| Freq. Response & Distortion Curves | |
 |
|
