BEYMA POWER 10 - 10" SUBWOOFER WOOFER
|
|
|
COMPETITION SERIES |
|
BEYMA POWER 10 - 10" SUBWOOFER WOOFER |
|
10" SUBWOOFER HAS A 7.0MM XMAX W/ 600 WATTS POWER HANDLING! |
|
|
|
No Longer Available. A Good Replacement Is The Faital Pro 10RS350-4 |
|
WOOFER MODEL |
POWER 10 |
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
4
ohms |
|
AES
Power Rating |
300
Watts |
| Program Power |
600
Watts |
|
Frequency
Response |
45Hz
- 2.0kHz |
|
Sensitivity
(1W/1m) |
93dB |
|
Voice
Coil Diameter |
3"
/ 77mm |
| Recom. Enclosure Volume | .7-1.41 ft3 / 20-40 Liters |
| BL Factor | 13 N/A |
| Magnetic Assembly Weight | 14.3 lb. / 6.5 kg. |
|
Mounting Information |
|
|
Overall Diameter |
10.63" / 270mm |
|
Bolt
Circle Diameter |
10.04"
/ 255mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 9.45" / 240mm |
| - Rear Mount | 9.06" / 230mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.11 ft3 / 3.0 Liters |
|
Overall
Depth |
4.8"
/ 130mm |
|
Net
Weight |
12.54 lb. / 5.7 kg. |
| Shipping Weight | 15.4 lb. / 7 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Rubber |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 40 Hz |
| Impedance (Re) | 3.0 ohms |
| Coil Inductance (Le) | 1.3 mH |
| Mechanical Q (Qms) | 7.1 |
| Electrical Factor (Qes) | .26 |
| Total Q (Qts) | .25 |
| Comp. Equivelant Vol. (Vas) | 1.8 ft3 / 51 Liters |
| Voice Coil Overhang (Xmax) | 7.0 mm |
| Surface Area of Cone (Sd)m2 | 0.038 |
| Reference Efficiency | 1.3% |
| Displacement Volume (Vd) | 260 cm3 |

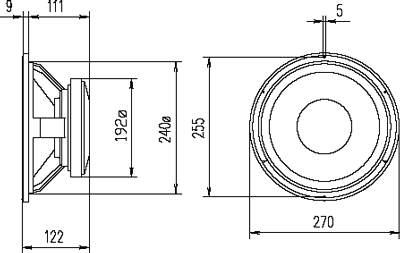

| Mounting Dimensions | |
 |
|
|

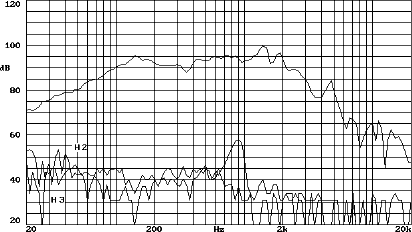

Frequency Response & Distortion Curves |
|
 |
|
