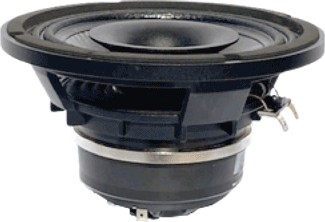

BEYMA PRO6FX240ND - 6.5" CARBON FIBER COAXIAL SPEAKER
|
|
|
BEYMA PRO6FX240ND - 6.5" CARBON FIBER COAXIAL SPEAKER |
|
NEW BEYMA Pro6FX240Nd COAXIAL SPEAKER HAS PRECISE TIME ALIGNMENT AND IS VERY SMOOTH & DETAILED SOUNDING! |
|
|
|
NEW BEYMA PRO6FX240ND |
|
Item Price: $577.95 |
|
|
COAXIAL MODEL |
PRO6FX240ND |
|
Specifications |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8 ohms |
|
Low Frequency AES
Power Rating |
200 Watts |
| Low Frequency Program Power |
400 Watts |
|
High Frequency AES
Power Rating |
40 Watts |
| High Frequency Program Power |
80 Watts |
|
Frequency
Response |
100Hz
- 20kHz |
|
High Frequency Sensitivity (1W/1m) |
103dB |
| Low Frequency Sensitivity (1W/1m) | 94dB |
|
LF Voice
Coil Diameter |
2" / 50.8mm |
|
HF Voice
Coil Diameter |
1.75" /
44.4mm |
| Recom. Crossover Frequency | 2.5kHz or higher @ 12dB/oct. |
| Voice Coil Length | 14 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 26 mm |
| BL Factor | 9.1 N/A |
|
Mounting Information |
|
|
Overall Diameter |
6.9"
/ 174mm |
| Bolt Circle Diameter |
6.2"
/ 158mm |
| Baffle Cutout Diameter | 5.71" / 145.1mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.02 ft3 / .55 Liters |
|
Overall
Depth |
4.0"
/ 103.1mm |
|
Net
Weight |
4.2 lb. / 1.9 kg. |
| Shipping Weight | 4.6 lb. / 2.1 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Carbon Fiber |
| Surround | Two Roll Treated Cloth |
| Voice Coil | Aluminum |
| Spider | Conex |
| Magnet | Neodymium |
|
High Frequency Tweeter |
|
| Diaphragm | PM-4 |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 100 Hz |
| Impedance (Re) | 4.6 ohms |
| Coil Inductance (Le) | .24 mH |
| Mechanical Q (Qms) | 3.5 |
| Electrical Factor (Qes) | .56 |
| Total Q (Qts) | .48 |
| Comp. Equivalent Vol. (Vas) | .14 ft3 / 4 Liters |
| Voice Coil Overhang (Xmax) | 5.5 mm |
| Diaphragm Mass (Mms) | 15 Grams |
| Surface Area of Cone (Sd)m2 | 0.0135m2 |
| Reference Efficiency | .83% |
| Displacement Volume (Vd) | 74 cm3 |
|

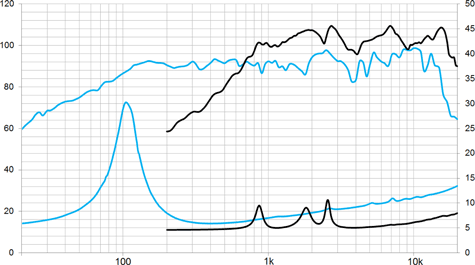

Frequency Response & Impedance Curves |
|
|
|
|
|

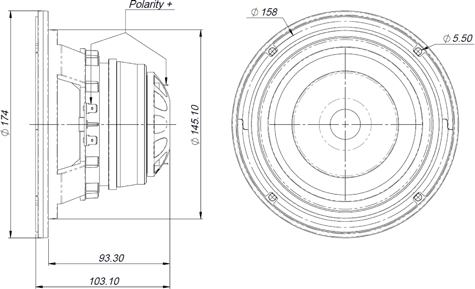

Mounting Dimensions |
|
|
|
|
