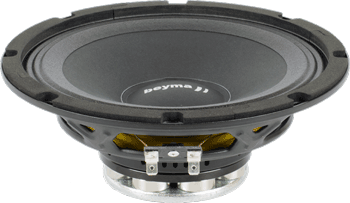

BEYMA PRO8MV2Nd - 8" NEODYMIUM MIDRANGE SPEAKER
|
|
|
BEYMA PRO8MV2Nd - 8" NEODYMIUM MIDRANGE SPEAKER |
|
THE BEYMA PRO8MV2Nd DELIVERS LOUD CLEAN MIDRANGE WITH LOTS OF DETAILS! |
|
|
|
BEYMA PRO8MV2Nd |
|
Item Price: $249.95 |
|
|
WOOFER MODEL - PRO8MV2Nd |
|
|
Specifications |
|
|
Nominal Basket Diameter |
8" / 200mm |
|
Impedance |
4 ohms |
|
AES Power Rating |
150 Watts |
| Program Power | 300 Watts |
|
Frequency Response |
120Hz - 8.0KHz |
|
Sensitivity (1W/1m) |
96dB |
|
Voice Coil Diameter |
1.5" / 38.1mm |
| Voice Coil Length | 7.5mm |
| Air Gap Height | 6mm |
| Bl Factor (BL) | 9.1 N/A |
| Mounting Information | |
| Overall Diameter | 8.27" / 210mm |
| Bolt Circle Diameter | 7.6" / 192mm |
| Baffle Cutout Diameter | 7.1" / 180mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 2.9" / 75mm |
| Net Weight | 2.9 lb. / 1.3 kg. |
| Shipping Weight | 3.3 lb. / 1.5 kg. |
|
Materials |
|
| Basket | Pressed Steel |
| Cone | Paper |
| Surround | Treated Cloth |
| Surround Shape | Double Roll |
| Spider | Polycotton |
| Voice Coil | Copper Wire |
| Former | Glass Fiber |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 105 Hz |
| Impedance (Re) | 3.3 ohms |
| Coil Inductance (Le) | .3 mH |
| Mechanical Q (Qms) | 5.4 |
| Electrical Factor (Qes) | .46 |
| Total Q (Qts) | .43 |
| Comp. Equivalent Vol. (Vas) | .32 ft3 / 9 Liters |
| Voice Coil Overhang (Xmax) | 2.5 mm |
| Moving Mass (Mms) | 21 Grams |
| Surface Area of Cone (Sd) | 0.0220m2 |
| Reference Efficiency | 2.1% |
| Displacement Volume | 55 cm3 |
|
FREQUENCY RESPONSE & IMPEDANCE CURVE |
|
|
DIMENSIONAL DRAWING |
|
