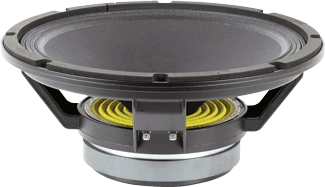

BEYMA SM-212 - 12" BASS / MID-BASS SPEAKER
|
|
|
BEYMA SM-212 - 12" BASS / MID-BASS SPEAKER |
|
THE BEYMA SM-212 DELIVERS TIGHT BASS & SMOOTH MIDS WITH 700 WATTS POWER HANDLING! |
|
|
|
BEYMA SM-212 |
|
Item Price: $189.95 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
350
Watts |
| Program Power |
700
Watts |
|
Frequency
Response |
45Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
2.5"
/ 63.5mm |
| Recom. Enclosure Volume | 1.06-3.5 ft3 / 30-100 Liters |
| Voice Coil Length | 19.5 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 27 mm |
|
Mounting Information |
|
| Overall Diameter | 12.3" / 312mm |
| Bolt Circle Diameter | 11.6" / 294.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 10.9" / 278mm |
|
No.
Of Mounting Holes |
8 |
| Volume Displaced By Driver | 0.14 ft3 / 4 Liters |
|
Overall
Depth |
5.2" / 132mm |
|
Net
Weight |
10.14 lb. / 4.6 kg. |
| Shipping Weight | 11.69 lb. / 5.3 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 43 Hz |
| Impedance (Re) | 5.5 ohms |
| Coil Inductance (Le) | .6 mH |
| Mechanical Q (Qms) | 5.3 |
| Electrical Factor (Qes) | .4 |
| Total Q (Qts) | .38 |
| Comp. Equivalent Vol. (Vas) | 3.64 ft3 / 103 Liters |
| Moving Mass (Mms) | 57 Grams |
| Voice Coil Overhang (Xmax) | 8.25 mm |
| Effective Surface Area (Sd) | .055m2 |
| Reference Efficiency | 1.9% |
| Displacement Volume | 453 cm3 |
|

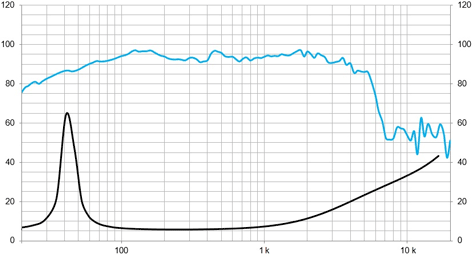

Frequency Response & Impedance Graph |
|
|
|
|
|

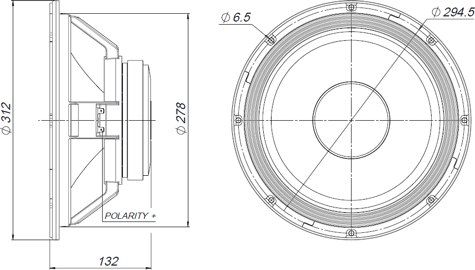

Dimensional Drawing |
|
|
|
|
