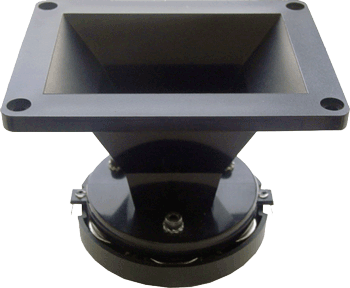

BEYMA SMC2012/N - SOFT DOME HORN TWEETER
|
|
|
BEYMA SMC2012/N - SOFT DOME HORN TWEETER |
|
THIS BEYMA SMC2012/N SOFT DOME HORN TWEETER DELIVERS SMOOTH WARM HIGHS! |
|
|
|
Item Price: $69.95 |
|
HORN TWEETER
MODEL |
|
|
Specifications |
|
| Exit Diameter | 1.0" / 25.4mm |
|
Impedance |
8
ohms |
|
|
7.2 ohms @ 3.3 khz |
| D.C. Resistance | 6.0 ohms |
|
RMS
Power Rating |
15 Watts @ 1.5kHz |
| Program Power | 30 Watts @ 1.5kHz |
|
Sensitivity
(1W/1m) |
101dB 1w @ 1m |
|
Frequency
Response |
1.0kHz
- 20kHz |
| Recommended Crossover | 1.5 kHz - 12dB or higher |
| Dispersion (H x V) | 50° x 35° |
| Voice Coil Diameter |
1.0"
/ 25.8mm |
| Magnetic Assembly Weight | .85 lb. / 0.39 kg. |
| Flux Density | 2T |
| BL Factor | 5.6 N/A |
|
Mounting Information |
|
| Overall Height | 4.53" / 115mm |
| Overall Width | 3.58" / 91mm |
| Overall Depth | 3.45" / 87.5mm |
| Baffle Cutout Height Dimensions | 3.34" / 86mm |
| Baffle Cutout Width Dimensions | 2.46" / 62.5mm |
| Net Weight | 1.1 lb. / .5 kg. |
| Shipping Weight | 1.32 lb. / .6 kg. |
|
Materials |
|
| Diaphragm | Supronyl |
| Voice Coil | Aluminum |
| Voice Coil Former | Polyimide |
| Horn Material | ABS |
| Magnet | Neodymium |
|

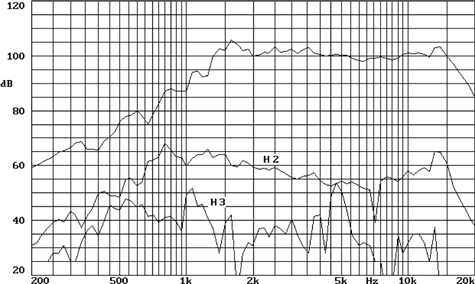

Freq. Response & Distortion Curves: On axis, 1w @ 1m |
|
|
|
|
|

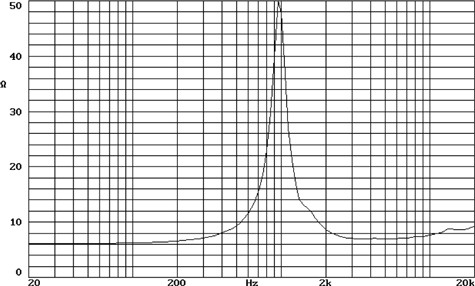

Inpedance Graph |
|
|
|
|
|

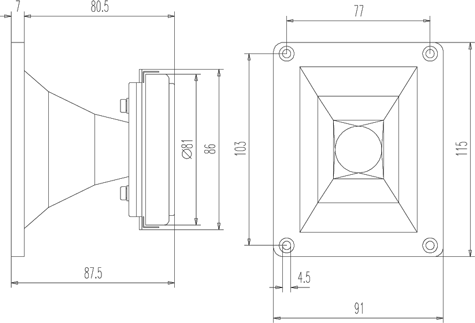

TWEETER DRAWING |
|
|
|
|
