BEYMA SMC225/ND - 1" PRO NEO H.F. DRIVER
|
|
|
BEYMA SMC225/ND - 1" PRO NEO H.F. DRIVER |
|
3.15" DIAMETER ALLOWS FOR MULTIPLE DRIVERS IN LINE ARRAY SYSTEMS & WEIGHS 1.54 LBS! |
|
|
|
BEYMA SMC225/ND |
|
Item Price: $151.50 New Low Price |
|
Beyma 6CX200Nd/N High Frequency Diaphragm
Item Price:
$79.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1" |
|
Impedance |
8
ohms |
|
|
5.5 ohms @ 4.5 khz |
| D.C. Resistance | 5.6 ohms |
|
AES
Power Rating |
40 Watts above 1.5kHz |
| Program Power | 80 Watts above 1.5kHz |
|
Sensitivity
(1W/1m) |
108dB 1w @ 1m w/ TD-250 horn |
|
Frequency
Response |
800Hz
- 20kHz |
| Recommended Crossover | 1.5 kHz or higher |
| Voice Coil Diameter |
1.75"
/ 44.4mm |
| Magnetic Assembly Weight | 1.32 lb. / 0.6 kg. |
| Flux Density | 1.8T |
| BL Factor | 8 N/A |
| Exit Angle | 13.1° |
|
Mounting Information |
|
| Overall Diameter |
3.15" / 80mm |
|
Overall
Depth |
2.24" / 57mm |
| Mounting | |
| - 3 M-4 threaded holes 120° apart on 2.24" diameter circle | |
| - or 2 M5 threaded holes 180° apart on 3" diameter circle | |
|
Net
Weight |
1.54 lb. / .7 kg. |
| Shipping Weight | 1.76 lb. / .8 kg. |
|
Materials |
|
| Diaphragm | Mylar |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Polyimide |
| Magnet | Neodymium |

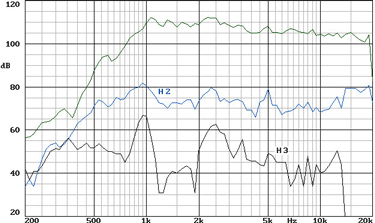

| Freq. Response & Distortion Curves(TD-250 Horn): On axis, 1w @ 1m | |
 |
|

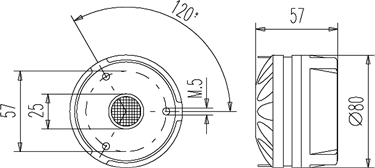

| Dimensions | |
 |
|
