• BEYMA SQL60 COMPRESSION BULLET TWEETER HANDLES 30 WATTS AES & 60 WATTS PROGRAM
• SMALL PROFILE FOR TIGHT SPACES WITH AN OVERALL DIAMETER OF 1.93"
• POLYMER PM4 DIAPHRAGM & 1" EDGEWOUND ALUMINUM VOICE COIL FOR ARTICULATE SMOOTH HIGHS UP TO 20KHZ
• ENHANCED TECHNOLOGY FOR HIGHER POWER HANDLING OF 30 WATTS AES
• LIGHTWEIGHT NEODYMIUM MAGNET & AN ATTRACTIVE LOOKING ALUMINUM FINISH
• COMES WITH (2) 4.7uF CAPACITORS & (2) MOUNTING BRACKETS
• FOR ALL HIGH QUALITY HIGH FREQUENCY APPLICATIONS IN CAR SPEAKER SYSTEMS
• AVAILABLE IN 4 OHMS ONLY

Beyma SQL60-Diaphragm Item Price: $69.95
TWEETER MODEL	SQL60
Specifications
Impedance	4 ohms
DC Resistance	3.5 ohms
AES Power Rating	30 Watts
Program Power	60 Watts
Sensitivity (1W/1m)	97.5dB 1w @ 1m
Frequency Response	5.0kHz - 20kHz
Recommended Crossover	5.0 kHz or higher
Voice Coil Diameter	1" / 25.4mm
Mounting Information
Overall Diameter	1.93" / 49mm
Overall Depth	1.3" / 33mm
Baffle Cutout Dimensions	1.65" / 42mm
Net Weight	.44 lbs./ .2 kg.
Shipping Weight	1.32 lbs./ .6 kg.
Materials
Diaphragm	PM4 Polymer
Voice Coil	Edgewound Aluminum
Front Cover	Aluminum
Magnet	Neodymium

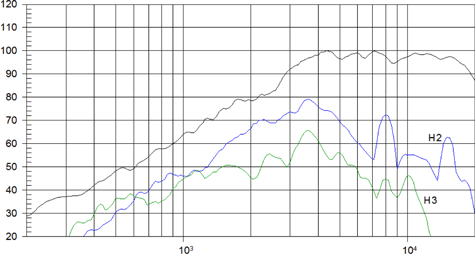

Freq. Response & Distortion Curves

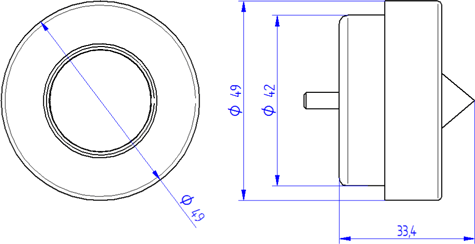

Dimensional Drawing
