BEYMA T2030 - DOME TWEETER
|
|
|
BEYMA T2030 - DOME TWEETER |
|
VERY SMOOTH & DETAILED HIGH FREQUENCY DESIGNED FOR HIGH QUALITY HOME THEATER OR STUDIO SPEAKERS! |
|
|
|
Item Price: $63.75 |
|
TWEETER
MODEL |
|
|
Specifications |
|
| Nominal Diameter | 32mm / 1.25" |
|
Impedance |
8
ohms |
|
|
6.2 ohms @ 2.5 khz |
| D.C. Resistance | 5.0 ohms |
|
RMS
Power Rating |
15 Watts |
| Program Power | 30 Watts |
|
Sensitivity
(1W/1m) |
95dB 1w @ 1m |
|
Frequency
Response |
1.5kHz
- 20kHz |
| Recommended Crossover | 2.0 kHz - 12dB or higher |
| Dispersion (H x V) |
|
| Voice Coil Diameter |
1.0"
/ 25.4mm |
| Magnetic Assembly Weight | 1.16 lb. / 0.525 kg. |
| Flux Density | 1.44T |
| BL Factor | 3 N/A |
|
Mounting Information |
|
| Overall Diameter | 3.9" / 102mm |
| Overall Depth | 1.65" / 42mm |
| Bolt Circle Diameter | 3.54" / 90mm |
| Baffle Cutout Dimensions | 2.95" / 75mm |
| Net Weight | 1.54 lb. / .7 kg. |
|
Materials |
|
| Diaphragm | Aluminum |
| Voice Coil | Aluminum |
| Voice Coil Former | Kapton |
| Front Cover | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant frequency (fs) | 1050hz |
| Mechanical Factor (Qms) | 3.957 |
| Electrical Factor (Qes) | 1.567 |
| Total Q (Qts) | 1.122 |
|

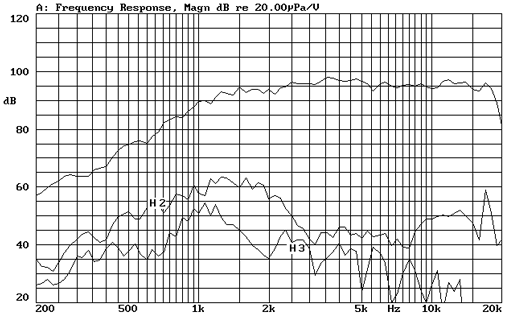

Freq. Response & Distortion Curves, MAGNITUDE: On axis, 1w @ 1m |
|
|
|
|
|
TWEETER DRAWING |
|
|
|
|
