BEYMA T25M - DOME TWEETER

THE BEYMA T25M HAS VERY SMOOTH & DETAILED HIGH FREQUENCY DESIGNED FOR HIGH PERFORMANCE APPLICATIONS!

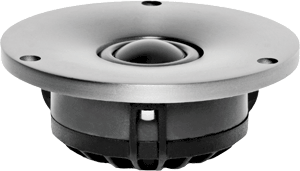

Beyma T25M Tweeter



Item Price: $176.95

TWEETER MODEL  - T25M

Specifications

Impedance

4 ohms

D.C. Resistance 3.1 ohms
AES Power Rating 20 Watts @ 2.5kHz
Program Power 40 Watts @ 2.5kHz
Long Term Power 200 Watts @ 2.5kHz (IEC268-5 18.2, with 2nd order HP Butterworth at 2,5 kHz)
Sensitivity (1W/1m) 88dB 1w @ 1m

Frequency Response

1.5kHz - 30kHz

Recommended Crossover 2.5 kHz - 12dB or higher
Voice Coil Diameter 1.0" / 25.4mm
Dispersion 80º Conical
Resonant frequency (fs) 600 Hz
Flux Density 1.3T
BL Factor 2.1N/A

Mounting Information
Overall Diameter 4.33" / 110mm
Overall Depth 1.76" / 44.8mm
Bolt Circle Diameter 3.85" / 98mm
Baffle Cutout Dimensions 3.46" / 88mm
Net Weight 1.32 lb. / .6 kg.
Shipping Weight 1.76 lb. / .8 kg.

Materials
Diaphragm Aluminum/Magnesium Alloy
Voice Coil Copper Clad Aluminum
Surround Polymer
Front Cover Aluminum
Copper Shorting Ring Yes
Magnet Ferrite

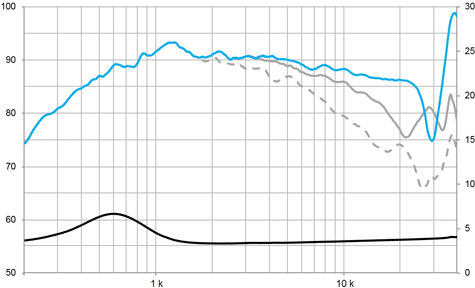

Beyma T25M Freq. Response & Distortion Curves

Beyma T25M Frequency

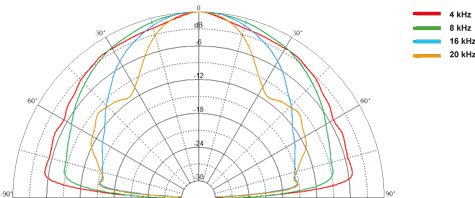

Beyma T25M Polar Pattern

Beyma T25M Polar Pattern

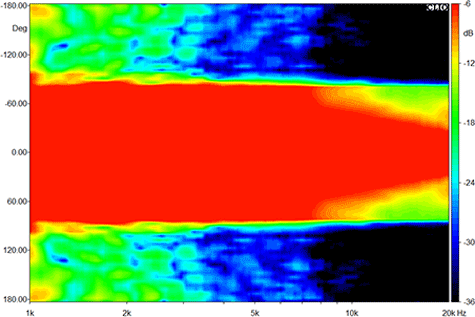

Beyma T25M High Frequency Directivity Pattern

Beyma T25M Directivity

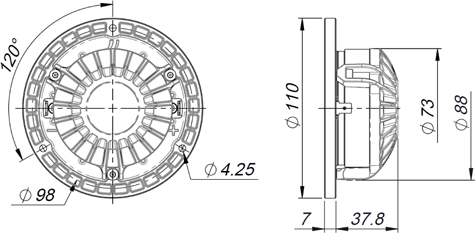

Beyma T25M Drawing

Beyma T25M Drawing

Beyma T25M Pole Piece & Cap

Beyma T25M Pole Piece

  • The magnet system has been optimized with the latest FEA software to squeeze the ceramic magnet to the limit.

  • T-shaped pole piece covered with a copper cap gives extremely symmetric force factor figures

  • The copper reduces harmonic distortion figures to the minimum and keeps the inductance down

  • Vented pole piece, flared on the top helps to get the steel saturated, while avoiding resonances together with damping material

  • Back radiation gets absorbed with three different carefully-selected damping materials behind the dome
