• THE NEW BEYMA TPL-200/B PLEATED DIAPHRAGM TWEETER
• HIGH POWER HANDLING OF 120 WATTS AES & 240 WATTS PROGRAM (X-BOW TECHNOLOGY) & HIGH SENSITIVITY OF 101DB SPL
• NATURAL SOUNDING STRONG PRONOUNCED MIDS AND EXTENDED SMOOTH HIGHS
• VERY FLAT RESPONSE WITH ULTRA LOW DISTORTION WITH AN EXTENDED RESPONSE TO 23KHZ
• DISPERSION IS 120°H x 20°V
• HIGHEST QUALITY HIGH FREQUENCY REPRODUCTION
• ATTRACTIVE SMOOTH LOOKING SHINY BLACK FINISH
• FOR USE IN HIGH END HOME THEATER SPEAKERS, P.A. SYSTEMS, SOUND REINFORCEMENT, ETC.

DELIVERS A INCREDIBLY SMOOTH NATURAL SOUND WITH HIGH POWER HANDLING & EXTENDED HIGHS TO 23KHZ LIKE A BERYLLIUM DIAPHRAGM!
	NEW BEYMA TPL-200/B
	Item Price: $694.95
VERY LOW 2ND & 3RD HARMONIC DISTORTION. CHECK GRAPH BELOW.
TWEETER DRIVER MODEL  - TPL-200/B
Specifications
Impedance	8 ohms
D.C. Resistance	4.9 ohms
AES Power Rating	120 Watts above 1.0kHz
Program Power	240 Watts above 1.0kHz
Sensitivity (1W/1m)	101dB SPL
Frequency Response	1kHz - 23kHz
Dispersion	120°H x 20°V
Recommended Crossover	1.0 kHz or higher(12dB/oct)
Mounting Information
Overall Height	6.3" / 160mm
Overall Width	5.12" / 130mm
Overall Depth	2.83" / 72mm
Cutout Height	5.98" / 152mm
Cutout WidtH	4.13" / 104.9mm
Net Weight	6.06 lb. / 2.75 kg.
Shipping Weight	6.72 lb. / 3.05 kg.

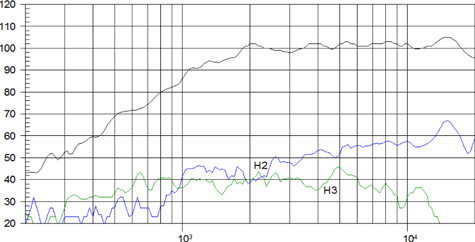

Freq. Response & Distortion Curves
Note: On axis frequency response measured in anechoic chamber, 1W @ 1m

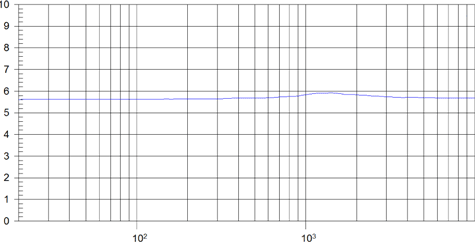

Free Air Impedance Curve

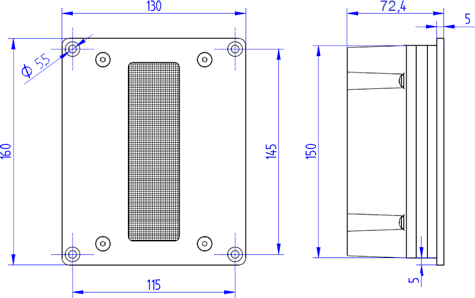

Dimensional Drawing

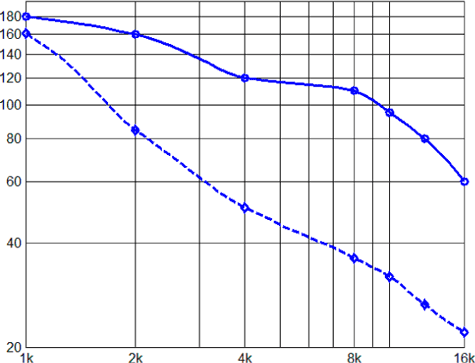

Beamwidth (-6dB)

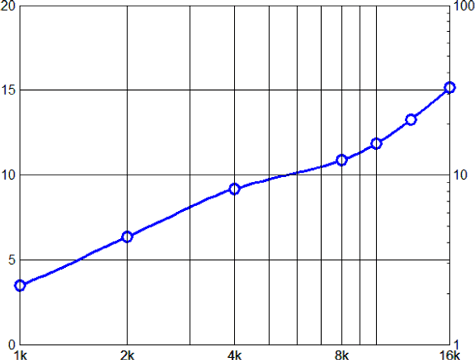

Directivity Index
