BEYMA TPL-150 - PLEATED TWEETER
|
|
|
BEYMA TPL-150 - PLEATED TWEETER |
|
DELIVERS A INCREDIBLY SMOOTH NATURAL SOUND WITH EXTENDED HIGHS TO 23KHZ LIKE A BERYLLIUM DIAPHRAGM! |
|
|
|
BEYMA TPL-150 |
|
Item Price: $579.95 |
|
|
Beyma TPL150-Dia -
Replacement Diaphragm -
|
|
|
TWEETER DRIVER
MODEL |
|
|
Specifications |
|
|
Impedance |
8
ohms |
|
|
5.9 ohms |
| D.C. Resistance | 6.8 ohms |
|
AES
Power Rating |
80 Watts above 1.0kHz |
| Program Power | 160 Watts above 1.0kHz |
| Sensitivity (1W/1m) | 99dB SPL |
| Frequency Response | 1kHz - 23kHz |
| Dispersion | 120°H x 20°V |
| Recommended Crossover | 1.0 kHz or higher(12dB/oct) |
|
Mounting Information |
|
| Overall Height | 6.3" / 160mm |
| Overall Width | 4.72" / 120mm |
| Overall Depth | 2.68" / 68mm |
| Cutout Height | 5.9" / 150mm |
| Cutout Width | 3.55" / 90mm |
| Net Weight | 4.8 lb. / 2.18 kg. |
|
Freq. Response & Distortion Curves |
|
|
|
|
|

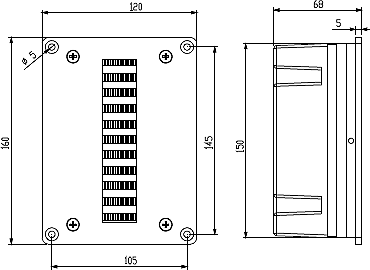

Dimensional Drawing |
|
|
|
|
|
Free Air Impedance Curve |
|
|
|
|
