BEYMA WL3 - 1" LINE ARRAY DRIVER

NEW 1" LINE ARRAY DRIVER SOUNDS SMOOTH W/ GOOD DEFINITION!

BEYMA WL3

Item Price: $319.95/Pair

LINE ARRAY DRIVER - WL3

Specifications

Throat Diameter

.8" / 20.8mm

Impedance

8 ohms

Minimum Impedance

5.5 ohms @ 4.5kHz

D.C. Resistance 5.6 ohms
AES Power Rating 40 Watts > above 1.5kHz
Program Power 80 Watts > above 1.5kHz
Sensitivity (1W/1m) 105dB 1w@1m w/ 90°x 5°horn

Frequency Response

700Hz - 20kHz

Recommended Crossover 1500 Hz or > @ 12dB/octave
Voice Coil Diameter 1.75" / 44.4mm
Magnetic Assembly Weight 1.32 lb. / .6 kg.
Flux Density 1.8T
BL Factor 8 N/A

Mounting Information

Overall Diameter 3.15" / 80mm
Overall Depth 5.6" / 142mm
Mounting (4) 6mm holes
Net Weight 2.2 lb. / 1.0 kg.

Materials

Waveguide Aluminum
Diaphragm Polyester
Voice Coil Edgewound Aluminum Ribbon
Voice Coil Former Kapton
Magnet Neodymium
FREQUENCY RESPONSE & DISTORTION CURVES W/ 90°x 5° HORN

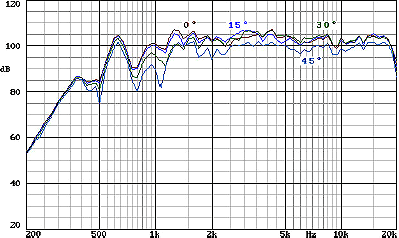

HORIZONTAL DISPERSION

VERTICAL DISPERSION
DRIVER MOUNTING INFORMATION
