BEYMA WL3FE - 1" LINE ARRAY DRIVER
|
|
|
BEYMA WL3FE - 1" LINE ARRAY DRIVER |
|
BEYMA WL3/FE 1" LINE ARRAY DRIVER SOUNDS SMOOTH W/ GOOD DEFINITION! |
|
|
|
BEYMA WL3FE |
|
Item Price: $195.75/Pair |
|
|
LINE ARRAY DRIVER - WL3FE |
|
|
Specifications |
|
|
Throat Diameter |
.8" / 20.5mm |
|
Impedance |
8 ohms |
|
Minimum Impedance |
5.1 ohms @ 3.5kHz |
| D.C. Resistance | 4.3 ohms |
| AES Power Rating | 70 Watts > above 1.8kHz |
| Program Power | 140 Watts > above 1.8kHz |
| Sensitivity (1W/1m) | 102dB 1w@1m w/ 90°x 5°horn |
|
Frequency Response |
1000Hz - 18kHz |
| Recommended Crossover | 1800 Hz or > @ 12dB/octave |
| Voice Coil Diameter | 1.75" / 44.3mm |
| Flux Density | 1.6T |
| BL Factor | 4.8 N/A |
|
Mounting Information |
|
| Overall Diameter | 4.5" / 115mm |
| Overall Depth | 5.9" / 150mm |
| Mounting | (4) M6 holes |
| Net Weight | 3.7 lb. / 1.7 kg. |
|
Materials |
|
| Waveguide | Aluminum |
| Diaphragm | PM4 |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |

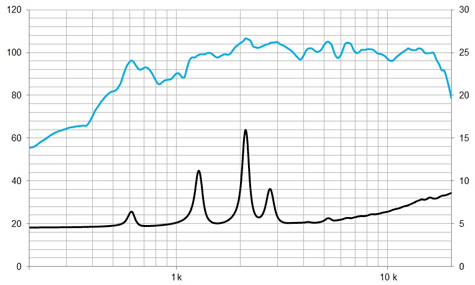

| FREQUENCY RESPONSE & IMPEDANCE CURVE | |
|
|
|

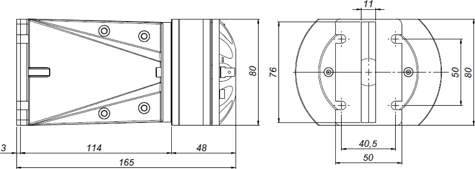

| DRAWING | |
 |
|
