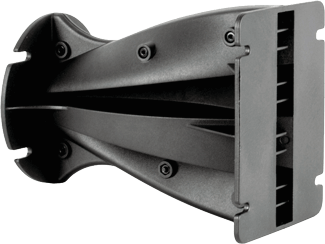

SG6 - 120°x 10° Line Array Waveguide Horn |
HORN MODEL | BEYMA SG6 |
SPECIFICATIONS |
|
Type |
Constant
Directivity |
Throat
Size |
1.4" |
Dispersion |
120°x
10° |
Lowest
Rec. Crossover |
500Hz |
Frequency Range |
500Hz |
Active Radiating Factor | 95% |
Directivity Index | 11.5 dB |
Construction | Reinforced Polycarbonate |
Net Weight |
1.76 lbs. / .8kg. |
Shipping Weight | 2.2 lbs. / 1.0kg. |
MOUNTING INFORMATION |
|
Overall Width | 5.12" / 130mm |
Overall Height |
6.3" / 160mm |
Overall Depth | 7.87" / 200mm |
Mounting Type | (4) M6 Holes On A 4" Diameter |

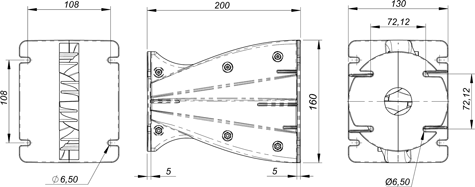

DIMENSIONAL DRAWING |
|
|
|

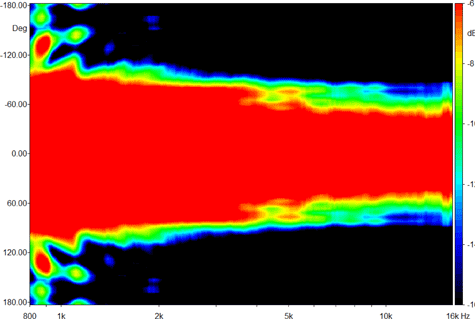

HORIZONTAL DIRECTIVITY |
|
|
|

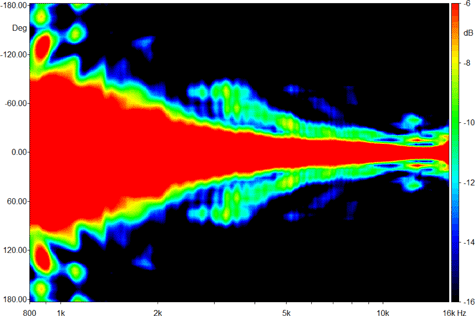

VERTICAL DIRECTIVITY |
|
|
