4510ND - NEODYMIUM 1" LINE ARRAY DRIVER
|
|
|
4510ND - NEODYMIUM 1" LINE ARRAY DRIVER |
|
GREAT FOR COUPLING CABINETS FOR A PRECISE PATTERN CONTROL! |
|
|
|
BMS 4510ND |
|
8 Ohm Version
Item Price: $329.95 |
|
|
16 Ohm Version
Item Price: $329.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat |
1"W x 4"H Planar Waveguide |
|
Impedance |
8
or 16 ohms |
| Frequency Range | 500Hz - 20kHz |
|
|
80 Watts @ 1.0kHz |
| Peak Power Rating | 450 Watts @ 1.0kHz |
| Recommended Crossover Frequency | 1.0kHz |
| Sensitivity (CD Horn - 90°x 10°) | 112dB SPL (1W @ 1M) |
| Maximum Sensitivity | 133dB SPL @ 80 Watts |
| Voice Coil Diameter | 1.75" / 44mm |
| Flux Density | 2.2T |
| Efficiency | .35% |
|
Mounting Information |
|
| Overall Height |
4.17" / 106mm |
| Overall Width | 3.35" / 85mm |
|
Overall
Depth |
4.65" / 118mm |
| Net Weight | 3.74 lb. / 1.7 kg. |
|
Materials |
|
| Diaphragm | Polyester |
| Voice Coil Material | Copper Clad Aluminum (2 Layers) |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
| 4510ND COUPLING PROVIDES A PERFECT CONTINUOUS LINE SOURCE | |
 |
|

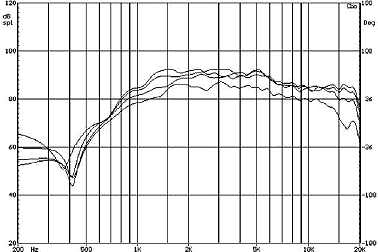

| SMALL 90°x 10° HORN - HORIZONTAL 0°, 15°, 30°, 45° | |
 |
|

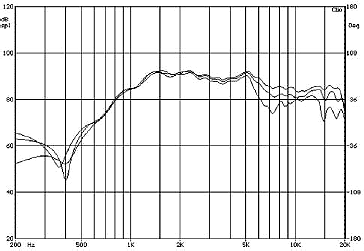

| SMALL 90°x 10° HORN - VERTICAL 0°, 5° & 10° | |
 |
|

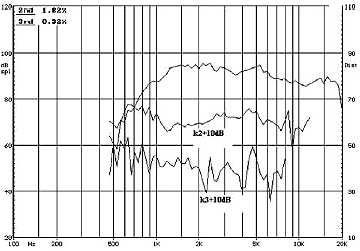

| 2ND & 3RD HARMONIC DISTORTION | |
 |
|
