4592ND-MID - 2" NEODYMIUM MID FREQUENCY DRIVER
|
|
|
4592ND-MID - 2" NEODYMIUM MID FREQUENCY DRIVER |
|
NICE SMOOTH MIDRANGE THANKS TO ITS' POLYESTER DIAPHRAGM & WEIGHS ONLY 5.28 LBS! |
|
|
|
BMS 4592ND-MID |
|
8 Ohm Version
Item Price: $829.95 |
|
|
16 Ohm Version
Item Price: $829.95 |
|
|
M.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
2" |
|
Impedance |
8 or 16
ohms |
| Frequency Range | 200Hz - 9kHz |
| Sensitivity (1W/1m) | 118dB SPL |
| Max SPL | 136dB SPL @ 150 watts |
| AES Power Handling | 150 watts above 400Hz |
| Peak Power Handling | 1,000 watts above 500Hz |
| Recommend Crossover Frequency | 300Hz |
| Minimum Impedance | 8.3 ohms @ 5kHz |
| Flux Density | 1.95 T |
| Voice Coil Diameter | 3.5" |
|
Mounting Information |
|
| Overall Diameter |
5.24" / 133mm |
|
Overall
Depth |
4.17" / 106mm |
| Mounting | 4 M6 threaded holes 90° apart on 4" diameter circle |
| Net Weight | 5.28 lb. / 2.4 kg. |
|
Materials |
|
| Diaphragm | Polyester |
| Voice Coil Material | Copper Clad Aluminum |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |

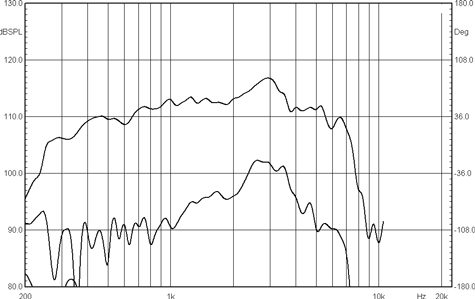

| FREQUENCY RESPONSE CURVE | |
|
|
|
