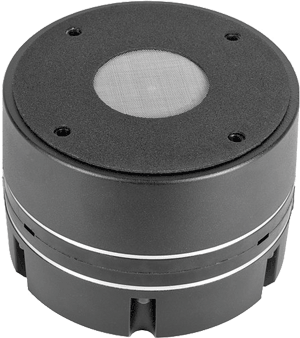

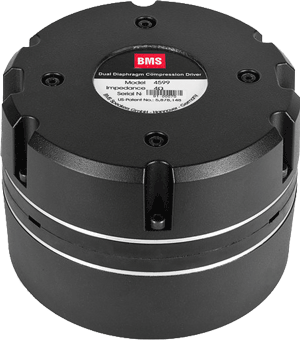

4599ND - 2" DUAL DIAPHRAGM NEODYMIUM MIDRANGE DRIVER
|
|
|
4599ND - 2" DUAL DIAPHRAGM NEODYMIUM MIDRANGE DRIVER |
|
YOU GET LOWER DISTORTION & HIGHER POWER HANDLING WHEN USING 2 VOICE COILS INSTEAD OF 1 VOICE COIL! |
|
|
|
BMS 4599ND |
|
(2) 16 Ohms Voice Coils = 8 Ohms 4599ND-8
Item Price: $1,159.95 |
|
|
(2) 8 Ohms Voice Coils = 4 Ohms 4 Ohm Version
Item Price: $1,159.95 |
|
|
M.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
2" |
|
Impedance |
8 or 4
ohms |
| Frequency Range | 200Hz - 9kHz |
| Sensitivity (1W/1m) | 123dB SPL on 40°x 20° waveguide |
| Max SPL | 136dB SPL @ 150 watts |
| AES Power Handling | 400 watts above 300Hz |
| Peak Power Handling | 2,000 watts above 400Hz |
| Recommend Crossover Frequency | 250Hz |
| Flux Density | 1.95 T |
| Voice Coil Diameter | (2) 3.5" |
|
Mounting Information |
|
| Overall Diameter |
5.24" / 133mm |
|
Overall
Depth |
3.86" / 98mm |
| Mounting | |
| - 4 M6 threaded holes 90° apart on 4" diameter circle | |
| Net Weight | 6.82 lb. / 3.1 kg. |
|
Materials |
|
| Diaphragm | Polyester |
| Voice Coil Material | Copper (2 Layers Inside/Outside) |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |

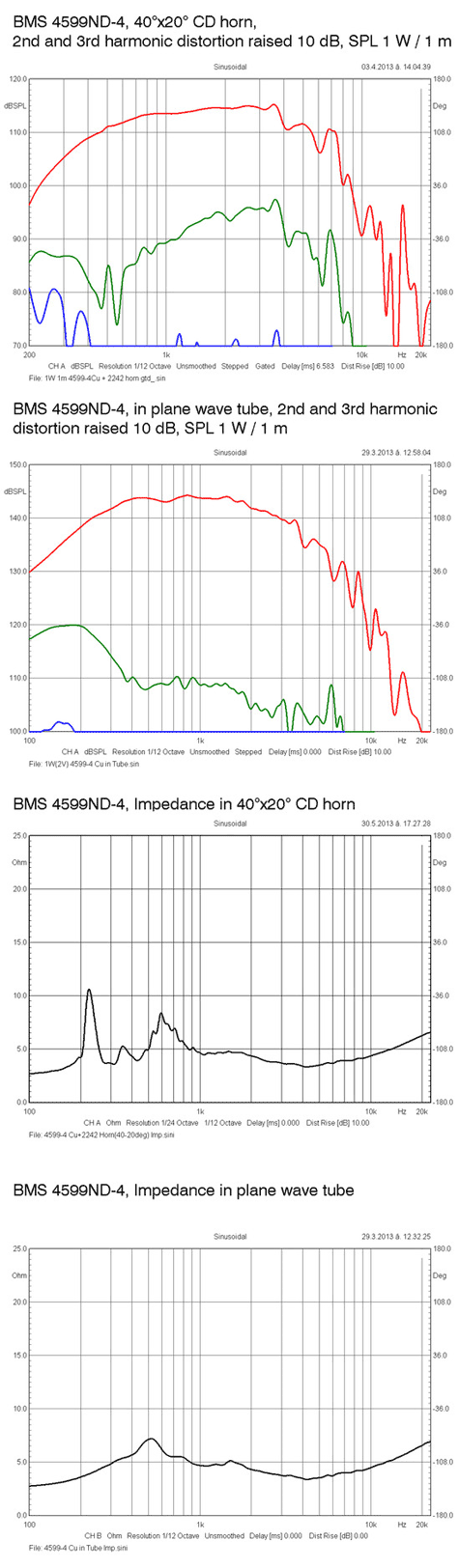

| DISTORTION / IMPEDANCE CURVE | |
 |
|
