5531ND - NEODYMIUM 1" SCREW-ON TYPE HIGH FREQUENCY DRIVER
|
|
|
5531ND - NEODYMIUM 1" SCREW-ON TYPE HIGH FREQUENCY DRIVER |
|
THE BMS 5531ND IS A 1" LIGHTWEIGHT HF DRIVER DELIVERS HIGH EFFICIENCY SPL & POWER HANDLING! |
|
|
|
BMS 5531Nd |
|
8 Ohm Version
Item Price: $239.95 |
|
|
16 Ohm Version
Item Price: $239.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1" |
|
Impedance |
8
ohms |
| Frequency Range | 500Hz - 20kHz |
| Recommended Crossover Frequency | 1kHz or higher |
| Sensitivity (1W/1m) | 117dB 1w@1m w/ Plane Wave Tube |
| Sensitivity (1W/1m) | 113dB 1w@1m w/ CD Horn |
| Maximum SPL | 132dB @ 80 Watts |
| Voice Coil Diameter | 1.75" / 44.4mm |
| Flux Density | 2.2 |
|
Mounting Information |
|
| Overall Diameter |
2.83" / 72mm |
|
Overall
Depth |
1.89" / 48mm |
| Mounting | Screw-on Type |
| External Thread Size | 1.375" |
| Net Weight | 1.49 lb. / .675 kg. |
|
Materials |
|
| Diaphragm | Polyester |
| Voice Coil Material | Copper Clad Aluminum |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |

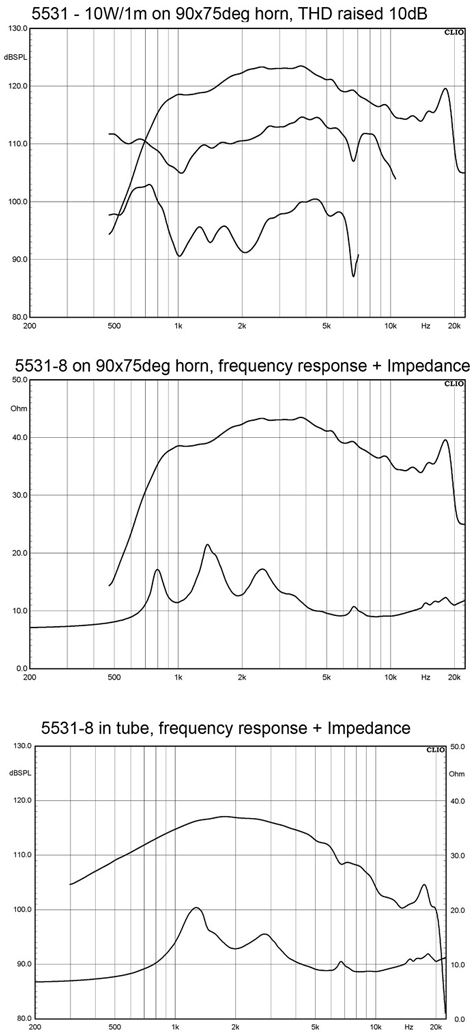

| FREQUENCY RESPONSE GRAPH | |
 |
|

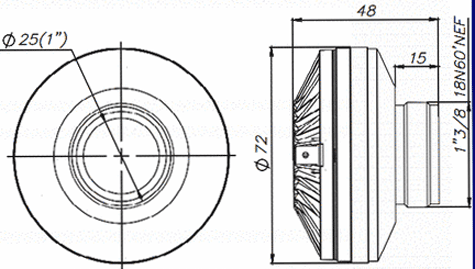

| MOUNTING DIMENSIONS | |
 |
|
