6CN160 - 6.5" LIGHTWEIGHT COAXIAL SPEAKER
|
|
|
6CN160 - 6.5" LIGHTWEIGHT COAXIAL SPEAKER |
|
THE BMS 6CN160 IS A LIGHTWEIGHT 6.5 INCH COAXIAL SPEAKER THAT HANDLES 80 WATTS AES! |
|
|
|
BMS 6CN160 |
|
Item Price: $319.95 |
|
|
SPEAKER
MODEL |
|
|
Low Frequency Specifications |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
130 Watts |
| Program Power | 260 Watts |
| Frequency Range | 80Hz - 20kHz |
| Sensitivity (1W/1m) | 93dB SPL |
|
Voice
Coil Diameter |
1.49"
/ 38mm |
| Voice Coil Length | 15 mm |
| Air Gap Height | 5 mm |
|
High Frequency Specifications |
|
|
|
1" / 25mm |
| AES Power Rating | 25 Watts |
| Program Power | 50 Watts |
| Sensitivity (1W/1m) | 110dB SPL |
| Frequency Range | 1.2kHz - 20kHz |
| Recommended Crossover Frequency | 1.5kHz |
|
Voice
Coil Diameter |
1"
/ 25.4mm |
| Flux Density | 1.6 T-M |
|
Mounting Information |
|
| Overall Diameter |
6.38" /
162mm |
|
Bolt
Circle Diameter |
6.77"
/ 172mm |
| Baffle Cutout Diameter | 5.75" / 146mm |
| No. Of Mounting Holes | 4 |
| Mounting Hole Diameter | .21" / 5.3mm |
|
Overall
Depth |
4.37" / 111mm |
| Net Weight | 2.6 lb. / 1.18 kg. |
|
Low Frequency Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper |
| Surround | Cloth |
| Voice Coil | Copper |
| Demodulation Rings | Three Aluminum |
| Magnet | Neodymium |
|
High Frequency Materials |
|
| Diaphragm | Polyester |
| Voice Coil | Copper Clad Aluminum |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 79 Hz |
|
Impedance
(Re) |
6.85 ohms |
| Coil Inductance (Le) | .51 mH |
| Mechanical Q (Qms) | 3.3 |
| Electrical Factor(Qes) | .38 |
| Total Q (Qts | .34 |
| Comp. Equivalent Vol. (Vas) | .31 ft3 / 8.9 Liters |
| Voice Coil Overhang (Xmax) | 5.0mm |
| Effective Surface Area (Sd) | .0132 m2 |
| Diaphragm Mass (Mms) | 11 Grams |
| BL Factor | 10 T-M |

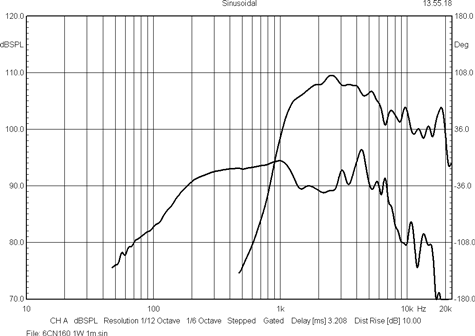

| Frequency Response Graph | |
 |
|

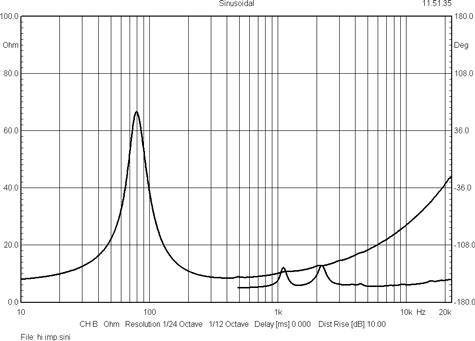

| Impedance Graph | |
 |
|

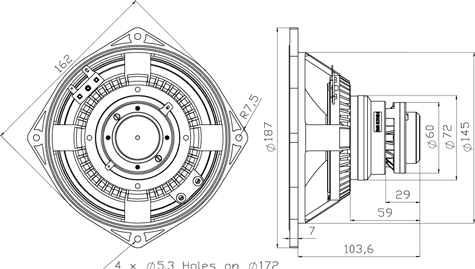

| Drawing | |
 |
|
