Celestion G12M Greenback
|
|
|
Celestion G12M Greenback |
|

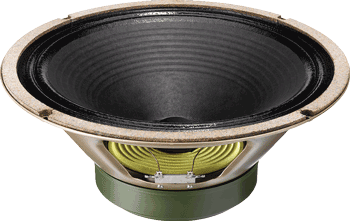

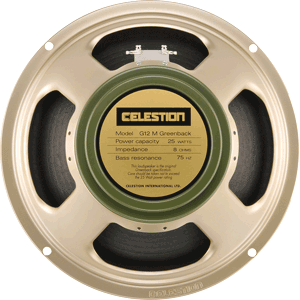

Celestion G12M Greenback 12 inch guitar speaker has a thick tight sound and is very articulate in the mids & highs! |
|
|
G12M Greenback-8 - 8 ohms
Item Price: $164.95 |
|
G12M Greenback-16 - 16 ohms
Item Price: $164.95 |
|
SPEAKER
MODEL |
G12M Greenback |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 304.8mm |
|
Impedance |
8
or 16 ohms |
|
RMS
Power Rating |
25
Watts |
|
Frequency
Response |
75Hz
- 5kHz |
| Resonant Frequency (fs) | 75Hz |
|
Sensitivity
(1W/1m) |
98dB |
| DC Resistance (Re) | 6.7Ω / 13.1Ω |
| Voice Coil Diameter | 1.75" / 44mm |
|
MATERIALS |
|
| Basket | Pressed Steel |
| Cone | Paper |
| Voice Coil | Rounded Copper |
| Magnet | Ceramic |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.17" / 309mm |
| Bolt Circle Diameter | 11.69" / 297mm |
| Cutout Diameter | 11.1" / 283mm |
| Overall Depth | 5.1" / 150mm |
| Mounting Hole Dimensions | 0.31" / 7.9mm |
| Number Of Mounting Holes | 4 |
| Magnet Diameter | 5.9" / 138mm |
| Magnet Depth | 1.52" / 39mm |
| Net Weight | 7.9lbs. / 3.6kg. |
|

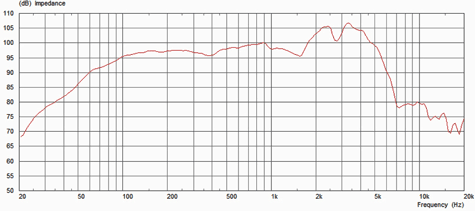

FREQUENCY RESPONSE |
|
|
|
|
