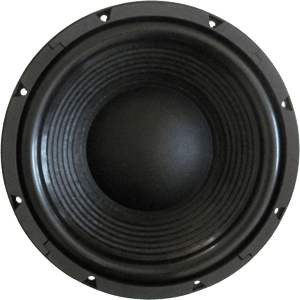

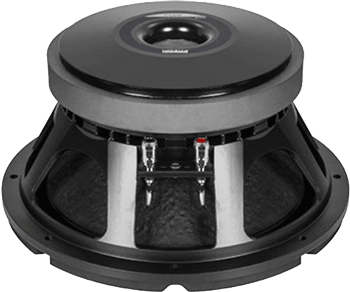

12.00SW - 12" EXTENDED LOW FREQUENCY SUBWOOFER

THE CIARE 12.00SW HANDLES A POWERFUL 2,000 WATTS W/ A VERY HIGH 14.0MM XMAX!

Ciare SW12.00Ciare 12.00SW

12.00SW

4 ohm version

Item Price: $406.94

8 ohm version

Item Price: $406.94

SPEAKER MODEL

12.00SW
SPEAKER CABINET DESIGNS BELOW

SPECIFICATIONS

Nominal Basket Diameter

12" / 320mm

Impedance

4, 8, 16 ohms

AES Power Rating

1,000 Watts
Program Power 2,000 Watts

Frequency Response

20Hz - 200Hz

Sensitivity (1W/1m)

89.5dB SPL

Voice Coil Diameter

4" / 100mm
Winding Material Copper
Former Material Fiber Glass
Winding Depth 1.3" / 33mm
Magnetic Gap Depth .4" / 10mm
Flux Density 1.1T

MOUNTING INFORMATION
Overall Diameter 12.4" / 315mm
Bolt Circle Diameter 11.61" / 295mm
Baffle Cutout Diameter 11.1" / 282mm
Depth 5.87" / 149mm
Flange & Gasket Thickness .75" / 19mm
Magnet Width 8.66" / 220mm
No. Of Mounting Holes 8
Mounting Hole Diameter .28" / 7.0mm
Net Weight 24.45 lbs./ 11.1 kg.

MATERIALS
Basket Cast Aluminum
Cone Treated Cellulose
Surround Rubber
Surround Shape Half Roll
Suspension Material Doped Nomex Fabric
Voice Coil Copper
Spider Double Nomex
Former Kapton
Connector Type Push Button
Magnet Ferrite

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

 30 Hz
Impedance (Re) 6.7 ohms
Electrical Factor(Qes) .36
Mechanical Q (Qms) 6.1
Total Q (Qts) .34
Compliance Equiv. Vol. (Vas) 59 Liters/2.08cu. ft.
Voice Coil Overhang (Xmax) 14mm
BL Factor 25.3 T-M
Diaphragm Mass (Mms) 183 Grams
Mechanical Compliance (Cms) .5mm/N
Surface Area of Cone (Sd)m2 0.049m2
Reference Efficiency .45%
Coil Inductance (Le) 2.35mH

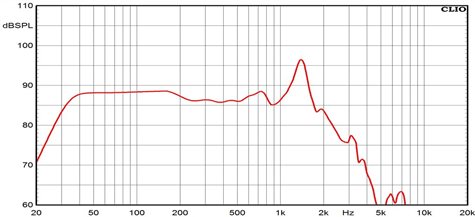

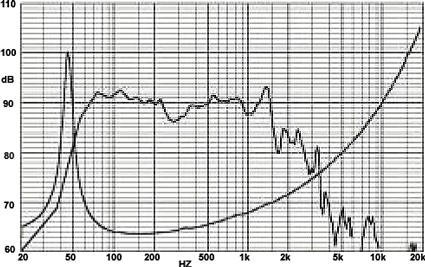

FREQUENCY RESPONSE
Ciare 12.00SW Frequency Response

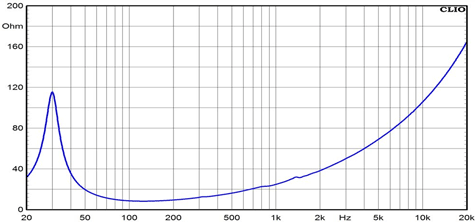

IMPEDANCE CURVE
Ciare SW12.00 Impedance

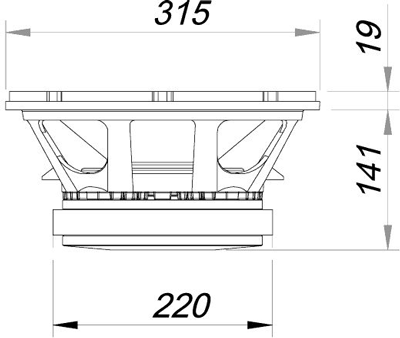

MOUNTING DIMENSIONS
Ciare 12.00SW Mounting

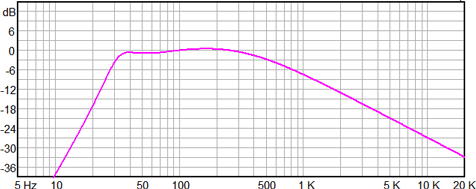

(1) 12.00SW IN A BASS REFLEX(PORTED) CABINET
Ciare SW12.00 Design SINGLE CABINET SPECS

  • Enclosure Type - Single Bass Reflex/Ported - 1 x 12"

  • Internal Cabinet Volume - 2.9 cu. ft.

  • Internal Cabinet Dimensions: 14" Wide x 17" Height x 21" Deep

  • Tuning - 32Hz

  • Frequency @ -3dB - 30.41Hz

  • Slot Port - 14" Wide x 1.625" Height

  • Slot Port Depth - 21.375" Deep

  • Cabinet Face Depth - 2.25" (To accommodate port depth)
(2) 12.00SW IN A BASS REFLEX(PORTED) CABINET
DUAL CABINET SPECS

  • Enclosure Type - Single Bass Reflex/Ported - 2 x 12"

  • Internal Cabinet Volume - 5.78 cu. ft.

  • Internal Cabinet Dimensions: 28" Wide x 17" Height x 21" Deep

  • Tuning - 32.5Hz

  • Frequency @ -3dB - 30.74Hz

  • Slot Port - 28" Wide x 1.75" Height

  • Slot Port Depth - 22" Deep

  • Cabinet Face Depth - 3.25" (To accommodate port depth)
FOR MORE CABINET SIZE OPTIONS & PORTING HELP PLEASE CALL 1-877-732-5374 OR 1-732-308-4670
