15NDH-4S - 15" LIGHTWEIGHT HIGH POWER SUBWOOFER SPEAKER

THE CIARE 15NDH4-S IS A LIGHTWEIGHT 15" SPEAKER THAT DELIVERS A STRONG TIGHT DEEP BASS THAT IS SUPER SMOOTH & HAS GOOD MIDS!

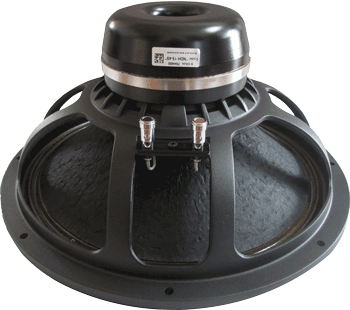

Ciare NDH15-4S

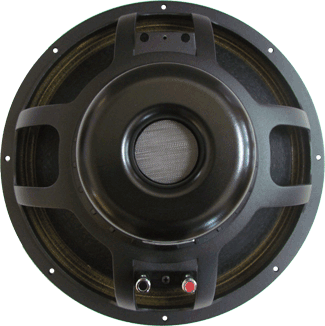

Ciare NDH15-4S

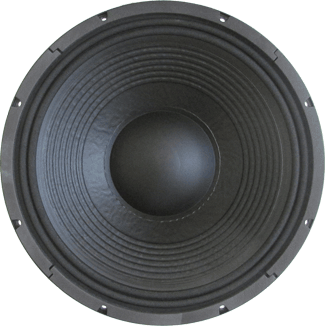

Ciare NDH15-4S

Item Price: $359.95 Temporarily Backordered

Recone Kit - 15NDH-4S-RK Item Price: $159.95

SPEAKER CABINET DESIGNS BELOW

SPEAKER MODEL

15NDH-4S

SPECIFICATIONS

Nominal Basket Diameter

15" / 380mm

Impedance

8 ohms

AES Power Rating

1,000 Watts

Program Power 2,000 Watts

Frequency Response

30Hz - 500Hz

Sensitivity (1W/1m)

96dB SPL

Voice Coil Diameter

4" / 100mm

MOUNTING INFORMATION

Overall Diameter 15.28" / 388mm
Bolt Circle Diameter 14.57" / 370mm
Baffle Cutout Diameter 13.94" / 354mm
Depth 7.17" / 182mm
No. Of Mounting Holes 8
Mounting Hole Diameter .28" / 7mm
Net Weight 17.6 lbs./ 8 kg.

MATERIALS

Basket Cast Aluminum
Cone Doped Paper
Cone Shape Straight
Suspension Material Doped Nomex Fabric
Surround Shape Two Rolls
Voice Coil Copper
Demodulation Ring Aluminum
Voice Coil Former Kapton
Magnet Neodymium

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

27.9 Hz
Impedance (Re) 6.04 ohms
Coil Inductance (Le) 1.07mH
Electrical Factor (Qes) .26
Mechanical Q (Qms) 11.19
Total Q (Qts) .25
Compliance Equiv. Vol. (Vas) 219.93 Liters/7.76 cu. ft.
Voice Coil Overhang (Xmax) 11.5mm
BL Factor 24.19 T-M
Diaphragm Mass (Mms) .143 kg.
Surface Area of Cone (Sd)m2 0.083m2
Reference Efficiency 1.78%

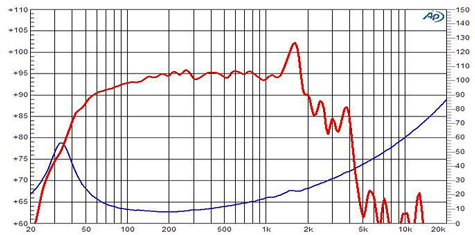

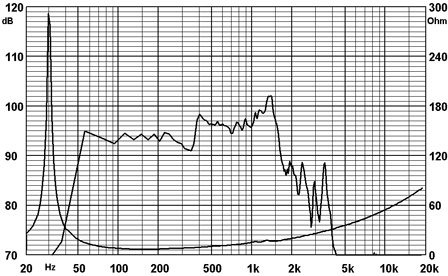

Frequency Response
Ciare NDH15-4S Frequency

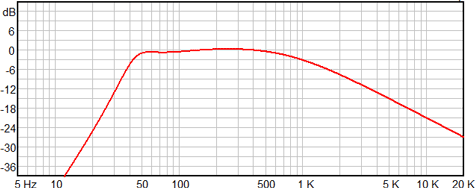

FREQUENCY RESPONSE IN 4.4 CU. FT. PORTED CABINET
Ciare NDH15-4S Frequency SINGLE CABINET SPECS
  • Enclosure Type - Single Bass Reflex/Ported - 1 x 15"

  • Internal Cabinet Volume - 4.4 cu. ft.

  • Internal Cabinet Dimensions: 17.5" Wide x 24" Height x 18.25" Deep

  • Tuning - 43Hz

  • Frequency @ -3dB - 58.99Hz

  • Rectangle Slot Port - 17.5" Wide x 2" Height

  • Slot Port Depth - 8.757" Deep

FREQUENCY RESPONSE IN 8.8 CU. FT. PORTED CABINET
Ciare NDH15-4S Frequency DUAL CABINET SPECS
  • Enclosure Type - Dual Bass Reflex/Ported - 2 x 15"

  • Internal Cabinet Volume - 8.8 cu. ft.

  • Internal Cabinet Dimensions: 17.5" Wide x 40" Height x 21.75" Deep

  • Tuning - 43Hz

  • Frequency @ -3dB - 42.4Hz

  • Rectangle Slot Port - 20" Height x 4" Wide

  • Slot Port Depth - 8" Deep

FOR MORE CABINET SIZE OPTIONS & PORTING HELP PLEASE CALL 1-877-732-5374 OR 1-732-308-4670
