18.00SW - 18" EXTENDED LOW FREQUENCY SUBWOOFER

CIARE 18.00SW HAS A VERY HIGH XMAX OF 14.0MM, A BL FACTOR OF 35.1 FOR SUPER STRONG MOTOR & DELIVERS DEEP BASS DOWN TO 20HZ THAT IS AWESOME!

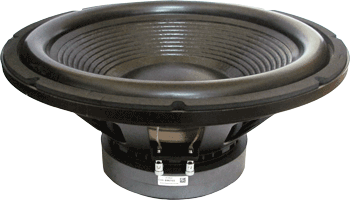

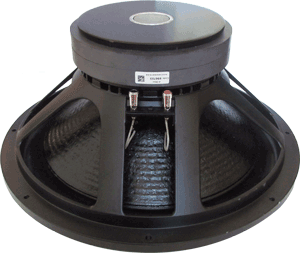

Ciare 18.00SW

Ciare 18.00SW

Ciare 18.00SW

4 ohm Version

Item Price: $459.95

8 ohm Version

Item Price: $459.95

SPEAKER MODEL

18.00SW

SPEAKER CABINET DESIGNS BELOW

SPECIFICATIONS

Nominal Basket Diameter

18" / 460mm

Impedance

4 or 8 ohms

AES Power Rating

1,000 Watts

Program Power 2,000 Watts

Frequency Response

20Hz - 1kHz

Sensitivity (1W/1m)

93dB

Voice Coil Diameter

4" / 100mm

Winding Material Copper
Former Material Fiber Glass
Winding Depth 1.0" / 25mm
Magnetic Gap Depth .4" / 10mm
Flux Density 1.3T

MOUNTING INFORMATION

Overall Diameter 18.1" / 460mm
Bolt Circle Diameter 17.32" / 440mm
Baffle Cutout Diameter 16.38" / 416mm
Depth 8.27" / 210mm
Flange Thickness 1.06" / 27mm
Magnet Width 8.66" / 220mm
No. Of Mounting Holes 8
Mounting Hole Diameter .28" / 7.0mm
Net Weight 34.5 lbs./ 15.7 kg.

MATERIALS

Basket Die-Cast Aluminum
Cone Treated Cellulose
Surround Rubber
Surround Shape Half Roll
Suspension Material Doped Nomex Fabric
Voice Coil Copper
Spider Double Nomex
Former Kapton
Connector Type Push Button
Magnet Ferrite

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

36Hz
Impedance (Re) 6.8 ohms
Electrical Factor(Qes) .47
Mechanical Q (Qms) 11.16
Total Q (Qts) .45
Compliance Equiv. Vol. (Vas) 88 Liters/3.11cu. ft.
Voice Coil Overhang (Xmax) 14.0mm
BL Factor 35.11 T-M
Diaphragm Mass (Mms) 371 Grams
Mechanical Compliance (Cms) .5mm/N
Surface Area of Cone (Sd)m2 0.1104m2
Reference Efficiency .65%
Coil Inductance (Le) 2.35mH

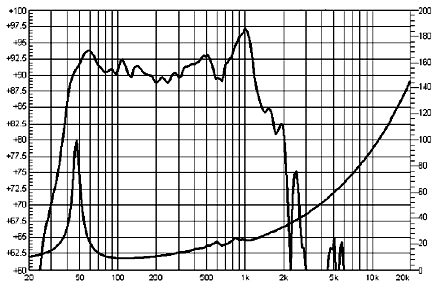

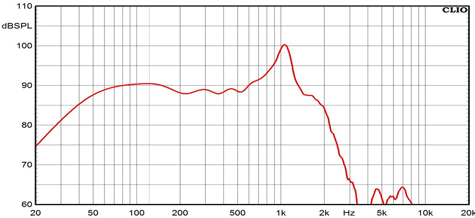

FREQUENCY RESPONSE GRAPH
Ciare 18.00SW Frequency

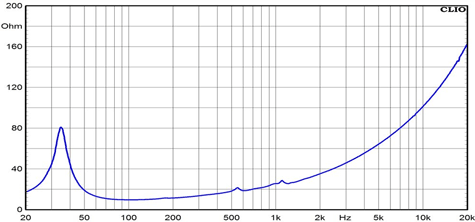

IMPEDANCE CURVE
Ciare 18.00SW Impedance
MOUNTING DIMENSIONS
Ciare 18.00SW Mounting
HORN LOADED CABINET DRAWING & RESPONSE
Ciare 18.00SW Horn

BASS REFLEX(PORTED) SINGLE CABINET SIZE & FREQUENCY RESPONSE
Ciare 18.00SW SINGLE CABINET SPECS
  • Enclosure Type - Single Bass Reflex/Ported - 1 x 18"

  • Internal Cabinet Volume - 7.55 cu. ft.

  • Internal Cabinet Dimensions: 22.5" Wide x 28.5" Height x 20.875" Deep

  • Tuning - 29Hz

  • Frequency @ -3dB - 28.47Hz

  • Slot Port - 22" Wide x 2" Height

  • Slot Port Depth - 16.625" Deep

BASS REFLEX(PORTED) DUAL CABINET SIZE & FREQUENCY RESPONSE
Ciare 18.00SW

DUAL CABINET SPECS

DUAL CABINET SPECS
  • Enclosure Type - Dual Bass Reflex/Ported - 2 x 18"

  • Internal Cabinet Volume - 15.55 cu. ft.

  • Internal Cabinet Dimensions: 46" Wide x 28.5" Height x 20.5" Deep

  • Tuning - 30Hz

  • Frequency @ -3dB - 29.62Hz

  • Slot Port - 46" Wide x 2" Height

  • Slot Port Depth - 15.125" Deep

FOR MORE CABINET SIZE OPTIONS & PORTING HELP PLEASE CALL 1-877-732-5374 OR 1-732-308-4670
