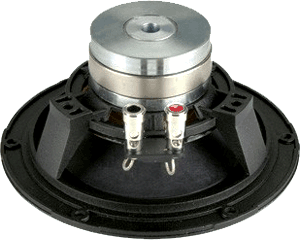

6.38NdW - 6.5" LIGHTWEIGHT NEODYMIUM SPEAKER
|
|
|
6.38NdW - 6.5" LIGHTWEIGHT NEODYMIUM SPEAKER |
|
THE CIARE 6.38NDW WORKS GREAT IN 2-WAY SPEAKER CABINETS THAT REQUIRE CLEAN STRONG BASS AND GOOD MIDS! |
|
|
|
Item Price: $144.95 |
| SPEAKER CABINET DESIGN BELOW | |
|
SPEAKER
MODEL |
6.38NdW |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
6.5" |
|
Impedance |
8 ohms |
|
AES Power Rating |
100 Watts |
| Program Power | 200 Watts |
|
Frequency Response |
50Hz - 5kHz |
|
Sensitivity (1W/1m) |
92dB SPL |
|
Voice Coil Diameter |
1.5" / 38mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 7.08" / 180mm |
| Bolt Circle Diameter | 6.54" / 166mm |
| Baffle Cutout Diameter | 5.7" / 145mm |
| Depth | 3.35" / 85mm |
| No. Of Mounting Holes | 6 |
| Mounting Hole Diameter | .19" / 4.7mm |
| Net Weight | 2.62 lbs./ 1.19 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Doped Paper |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Suspension Material | Doped Nomex Fabric |
| Voice Coil | Aluminum |
| Former | Kapton |
| Magnet | Neodymium |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
59.4 Hz |
|
Impedance
(Re) |
5.7 ohms |
| Electrical Factor(Qes) | .31 |
| Mechanical Q (Qms) | 10.17 |
| Total Q (Qts) | .30 |
| Compliance Equiv. Vol. (Vas) | 10.48 Liters/.37 cu. ft. |
| Voice Coil Overhang (Xmax) | 6.0mm |
| BL Factor | 11.0 T-M |
| Diaphragm Mass (Mms) | 17.45 grams |
| Surface Area of Cone (Sd)m2 | 0.0135m2 |
| Reference Efficiency (%) | 0.69% |
| Coil Inductance (Le) | .08mH |

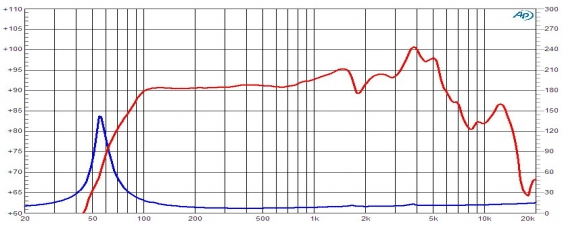

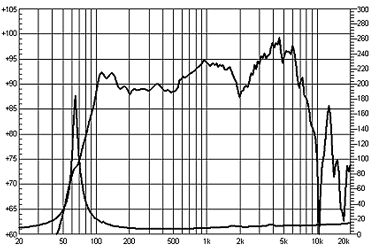

| FREQUENCY RESPONSE GRAPH | |
 |
|

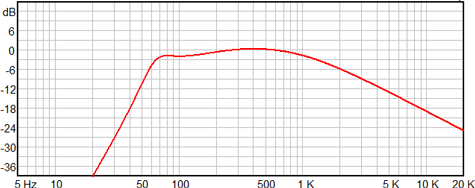

| FREQUENCY RESPONSE IN .4 CU. FT. PORTED CABINET | |
 |
|
