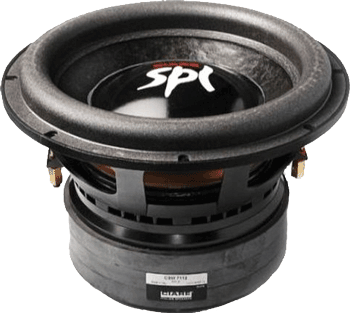

CSW7112EVO - 12" HIGH POWER DUAL VOICE COIL SUBWOOFER
|
|
|
CSW7112EVO - 12" HIGH POWER DUAL VOICE COIL SUBWOOFER |
|
THE CIARE CSW7112EVO HANDLES A POWERFUL 7,000 WATTS W/ A VERY HIGH 22.0MM XMAX! |
|
|
|
CSW7112EVO |
|
1 + 1 Ohm
Item Price: $914.99 |
|
|
SPEAKER
MODEL |
CSW7112EVO |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
12" |
|
Impedance |
1 + 1 ohms |
|
AES Power Rating |
700 + 700 Watts |
| Program Power | 7,000 Watts |
|
Frequency Response |
30Hz - 200Hz |
|
Sensitivity (1W/1m) |
95dB SPL |
|
Voice Coil Diameter |
3" / 75.2mm |
| Voice Coil Length | 2.01" / 51mm |
| Magnetic Gap Height | .59" / 15mm |
| Cabinet Type & Size | Ported & 1.24 cu.ft. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.4" / 315mm |
| Bolt Circle Diameter | 11.61" / 295mm |
| Baffle Cutout Diameter | 11.1" / 282mm |
| Depth | 8.68" / 220.5mm |
| Flange & Gasket Thickness | 1.22" / 31mm |
| Magnet Width | 8.66" / 220mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | .28" / 7.0mm |
| Net Weight | 42.29 lbs./ 19.2 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Reinforced Cellulose Fiber |
| Cone Shape | Straight |
| Surround | Polyurethane |
| Surround Shape | Half Roll |
| Suspension Material | Nomex |
| Voice Coil | Flat Aluminum |
| Spider | Double Nomex |
| Former | Aluminum |
| Connector Type | Push Button |
| Magnet | Ferrite |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
48 Hz |
|
Impedance
(Re) |
1.8 ohms |
| Electrical Factor(Qes) | .37 |
| Mechanical Q (Qms) | 9.2 |
| Total Q (Qts) | .36 |
| Compliance Equiv. Vol. (Vas) | 15 Liters/.53cu. ft. |
| Voice Coil Overhang (Xmax) | 22mm |
| BL Factor | 19.9 T-M |
| Diaphragm Mass (Mms) | 270 Grams |
| Surface Area of Cone (Sd)m2 | 0.0511m2 |
| Reference Efficiency | .45% |
| Coil Inductance (Le) | 1.25mH |

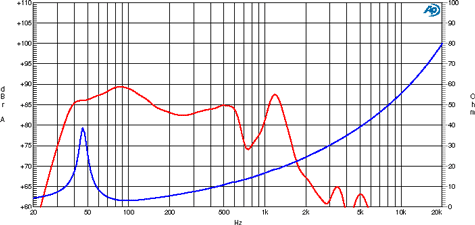

| FREQUENCY RESPONSE & IMPEDANCE CURVE | |
 |
|

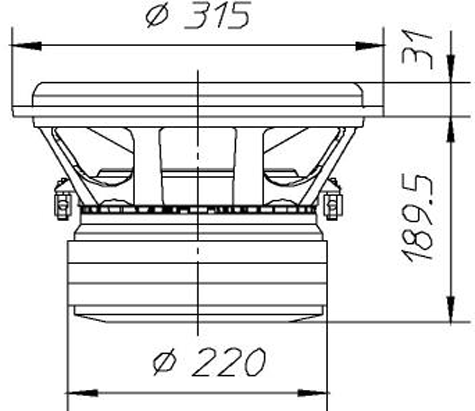

| MOUNTING DIMENSIONS | |
 |
|
| FOR CABINET SIZE OPTIONS & PORTING HELP PLEASE CALL 1-877-732-5374 OR 1-732-308-4670 | |
