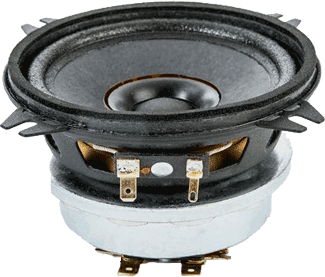

CXPA-4 - 4" COAXIAL SPEAKER
|
|
|
CXPA-4 - 4" COAXIAL SPEAKER |
|
CIARE CXPA-4 IS A HIGH QUALITY 4" COAXIAL SPEAKER WITH A LIGHTWEIGHT NEO MAGNET THAT HANDLES 280 WATTS! |
|
|
|
CXPA-4
Item Price: $163.95 |
|
SPEAKER MODEL |
CXPA-4 |
|
SPECIFICATIONS |
|
| Low Frequency Woofer | |
|
Nominal Basket Diameter |
4" |
|
Impedance |
8 ohms |
|
AES Power Rating |
100 Watts |
| Program Power | 200 Watts |
|
Frequency Response |
150Hz - 2.0kHz |
|
Sensitivity (1W/1m) |
89.2dB SPL |
|
Voice Coil Diameter |
1.5" / 38mm |
| Flux Density | .95T |
|
High Frequency Driver |
|
| Throat Diameter | .79" / 20mm |
| Impedance | 4 ohms |
|
AES
Power Rating |
10 Watts |
| Frequency Response | 20 Watts |
|
Sensitivity
(1W/1m) |
95dB SPL |
| Frequency Response | 2kHz - 20kHz |
| Voice Coil Diameter | .79" / 20mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 3.98" / 101mm |
| Bolt Circle Diameter | 4.33" / 110mm |
| Baffle Cutout Diameter | 3.58" / 91mm |
| Depth | 2.13" / 54mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 1.78 lbs./ .81 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Paper |
| Cone Shape | Exponential |
| Surround Shape (LF) | Double Roll |
| Suspension Material | Treated Paper |
| Voice Coil (HF) | Polyester |
| Former (LF / HF) | Fiberglass / Kapton |
| Winding Material (LF / HF) | Copper |
| HF Diaphragm | Polyester |
| Connector | Faston |
| Magnet (HF & LF) | Neodymium |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
198 Hz |
|
Impedance
(Re) |
5.26 ohms |
| Electrical Factor(Qes) | .86 |
| Mechanical Q (Qms) | 4.9 |
| Total Q (Qts) | .73 |
| Compliance Equiv. Vol. (Vas) | 3.9 Liters/.1 cu. ft. |
| Voice Coil Overhang (Xmax) | 2.75mm |
| BL Factor | 6.85 T-M |
| Diaphragm Mass (Mms) | 6.15 grams |
| Surface Area of Cone (Sd)m2 | 0.05153m2 |
| Reference Efficiency (%) | .34% |
| Coil Inductance (Le) | .38mH |

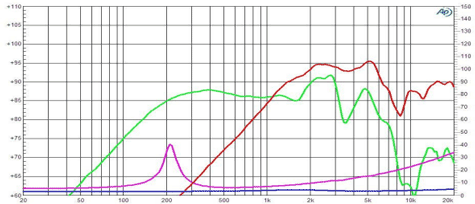

| FREQUENCY RESPONSE & IMPEDANCE GRAPH | |
 |
|
