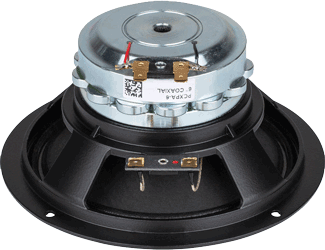

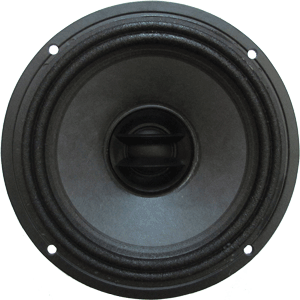

CXPA-6 - 6.5" COAXIAL SPEAKER
|
|
|
CXPA-6 - 6.5" COAXIAL SPEAKER |
|
CIARE CXPA-6 IS A HIGH QUALITY 6.5" COAXIAL SPEAKER WITH A LIGHTWEIGHT NEO MAGNET THAT HANDLES 280 WATTS! |
|
|
|
CXPA-6
Item Price: $259.95 |
|
SPEAKER MODEL |
CXPA-6 |
|
SPECIFICATIONS |
|
| Low Frequency Woofer | |
|
Nominal Basket Diameter |
6.5" |
|
Impedance (LF/HF) |
8 ohms / 4 ohms |
|
AES Power Rating |
140 Watts |
| Program Power | 280 Watts |
|
Frequency Response |
80Hz - 1.2kHz |
|
Sensitivity (1W/1m) |
95dB SPL |
|
Voice Coil Diameter |
2" / 50mm |
|
High Frequency Driver |
|
| Throat Diameter | 1" / 25mm |
| Impedance | 4 ohms |
|
AES
Power Rating |
25 Watts |
| Frequency Response | 50 Watts |
|
Sensitivity
(1W/1m) |
95dB SPL |
| Frequency Response | 2kHz - 20kHz |
| Voice Coil Diameter | 1" / 25mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 6.5" / 165mm |
| Bolt Circle Diameter | 6.06" / 154mm |
| Baffle Cutout Diameter | 5.78" / 147mm |
| Depth | 2.83" / 72mm |
| No. Of Mounting Holes | 4 |
| Mounting Hole Diameter | .20" / 5mm |
| Flange Thickness | .20" / 5mm |
| Net Weight | 3.3lbs./ 1.5 kg. |
| Shipping Weight | 3.7lbs./ 1.68 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Paper |
| Surround Shape (LF) | Double Roll |
| Suspension Material | Treated Paper |
| Voice Coil (HF) | Polyester |
| Former (LF / HF) | Kapton / Aluminum |
| Winding Material (LF / HF) | Copper / Aluminum |
| Connector | Faston |
| Magnet (HF & LF) | Neodymium |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
105 Hz |
|
Impedance
(Re) |
3.4 ohms |
| Electrical Factor(Qes) | .4 |
| Mechanical Q (Qms) | 8.3 |
| Total Q (Qts) | .38 |
| Compliance Equiv. Vol. (Vas) | 12.1 Liters/.43 cu. ft. |
| Voice Coil Overhang (Xmax) | 5.5mm |
| BL Factor | 10.94 T-M |
| Diaphragm Mass (Mms) | 13.1 grams |
| Surface Area of Cone (Sd)m2 | 0.0227m2 |
| Reference Efficiency (%) | 1.34% |
| Coil Inductance (Le) | .36mH |

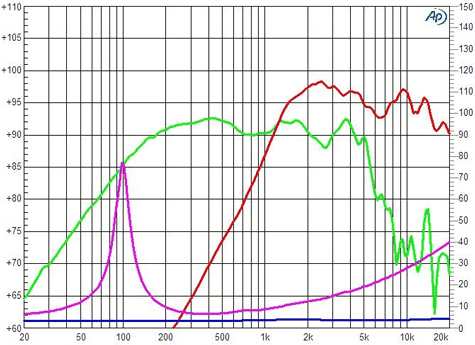

| FREQUENCY RESPONSE GRAPH | |
 |
|
|

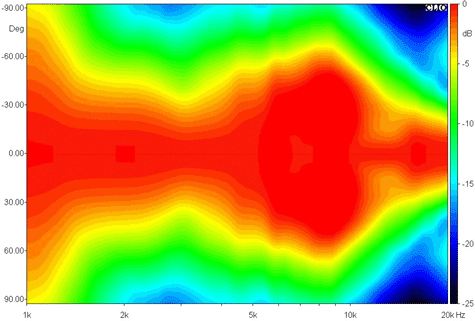

LOW FREQUENCY DIRECTIVITY |
|
 |
|
|

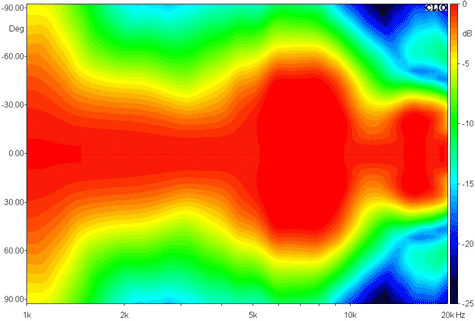

HIGH FREQUENCY DIRECTIVITY |
|
 |
|
