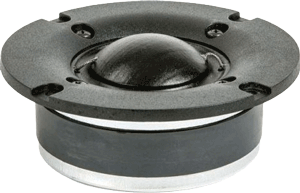

HM500 - 5" DOME MIDRNAGE
|
|
|
HM500 - 5" DOME MIDRNAGE |
|
THE CIARE HM500 IS A 2" EXIT DOME MIDRANGE THAT HAS SMOOTH DETAILED MIDRANGE! |
|
|
|
HM500
Item Price: $104.95 |
|
SPEAKER
MODEL |
HM500 |
|
SPECIFICATIONS |
|
|
Overall Diameter |
5.12" |
|
Impedance |
8 ohms |
|
AES Power Rating |
100 Watts |
| Program Power | 200 Watts |
|
Frequency Response |
700Hz - 5kHz |
|
Sensitivity (1W/1m) |
91dB SPL |
|
Voice Coil Diameter |
2" / 50mm |
| Voice Coil Length | .12' / 3mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 5.12" / 130mm |
| Bolt Circle Diameter | 4.57" / 116mm |
| Baffle Cutout Diameter | 4.06" / 103mm |
| Depth | 1.77" / 45mm |
| No. Of Mounting Holes | 4 |
| Mounting Hole Diameter | .2" / 5mm |
| Flange Thickness | 5.0mm |
| Magnet Diameter | 4" / 100mm |
| Net Weight | 3.3 lbs./ 1.5 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Treated Paper w/ Glass Sphere |
| Cone Shape | Exponential |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Voice Coil | Aluminum |
| Spider | Fabric |
| Former | Kapton |
| Connector Type | Faston |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
550 Hz |
| Impedance (Re) | 6.5 ohms |
| Electrical Factor(Qes) | .8 |
| Mechanical Q (Qms) | 3.8 |
| Total Q (Qts) | .66 |
| Voice Coil Overhang (Xmax) | 1.0mm |
| BL Factor | 7.5 T-M |
| Diaphragm Mass (Mms) | 2 grams |
| Surface Area of Cone (Sd)m2 | 0.0026m2 |
| Coil Inductance (Le) | .2mH |

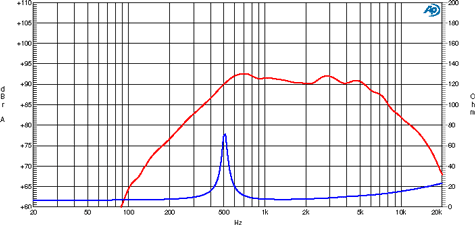

| FREQUENCY RESPONSE GRAPH & IMPEDANCE CURVE | |
 |
|

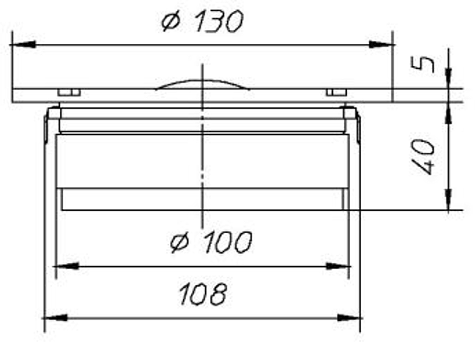

| DIMENSIONAL DRAWING | |
 |
|
