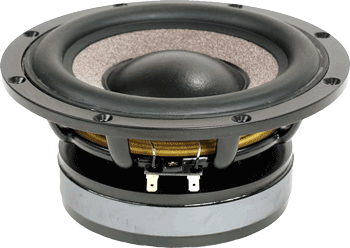

HSG200-44 - VERY HIGH POWER DUAL VOICE COIL 8" SUBWOOFER SPEAKER
|
|
|
HSG200-44 - VERY HIGH POWER DUAL VOICE COIL 8" SUBWOOFER SPEAKER |
|
THE CIARE HSG200-44 IS A 4+4 DUAL VOICE COIL SUBWOOFER SPEAKER THAT HANDLES A MASSIVE 800 WATTS PROGRAM! |
|
|
|
HSG200-44 - 4+4 Ohms
Item Price: $229.95 |
|
SPEAKER
MODEL |
HSG200-44 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
8" |
|
Impedance |
4+4 ohms |
|
AES Power Rating |
350 Watts |
| Program Power | 800 Watts |
|
Frequency Response |
35Hz - 300Hz |
|
Sensitivity (1W/1m) |
88dB SPL |
|
Voice Coil Diameter |
3" / 75mm |
| Gap Height | .39" / 10mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 8.82" / 224mm |
| Bolt Circle Diameter | 8.27" / 210mm |
| Baffle Cutout Diameter | 7.24" / 184mm |
| Depth | 3.7" / 94mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | .22" / 5.5mm |
| Flange Thickness | .3" / 7.5mm |
| Magnet Diameter | 6.14" / 156mm |
| Net Weight | 10.6lbs./ 4.82 kg. |
| Shipping Weight | 11.2lbs./ 5.09 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | High Thickness Paper w/ Glass Sphere |
| Cone Shape | Exponential |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Voice Coil | Copper |
| Spider | Fabric |
| Former | Fiberglass |
| Connector Type | Faston |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
39 Hz |
|
Impedance
(Re) |
6 ohms (Coils in Series) |
| Electrical Factor(Qes) | .39 |
| Mechanical Q (Qms) | 4.7 |
| Total Q (Qts) | .36 |
| Compliance Equiv. Vol. (Vas) | 19 Liters/.67 cu. ft. |
| Voice Coil Overhang (Xmax) | 7.5mm |
| BL Factor | 14.9 T-M |
| Diaphragm Mass (Mms) | 59.5 grams |
| Surface Area of Cone (Sd)m2 | 0.022m2 |
| Reference Efficiency (%) | 0.3% |
| Coil Inductance (Le) | 1.5mH |

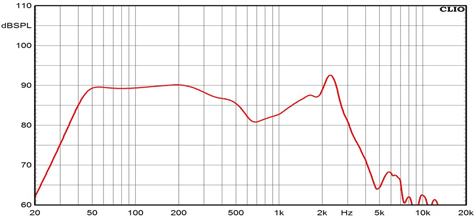

| FREQUENCY RESPONSE GRAPH | |
 |
|

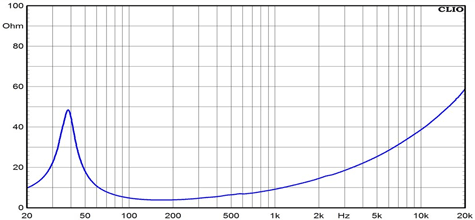

| IMPEDANCE CURVE | |
 |
|

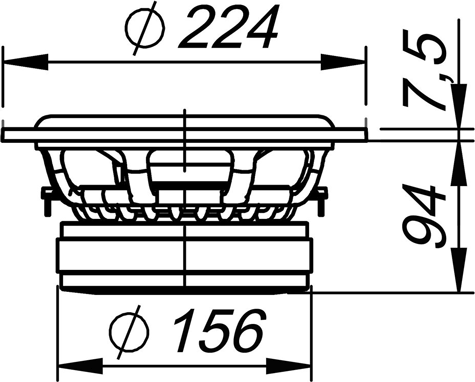

| DIMENSIONAL DRAWING | |
 |
|
