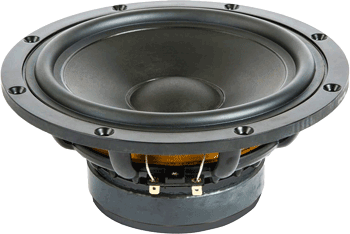

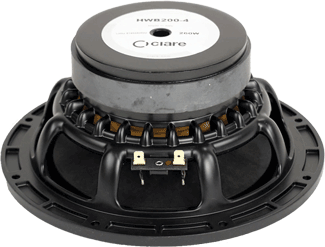

HWB200-4 - POWERFUL 8" SPEAKER - 4 OHMS
|
|
|
HWB200-4 - POWERFUL 8" SPEAKER - 4 OHMS |
|
THE CIARE HWB200-4 HAS POWERFUL DEEP BASS DOWN TO 30HZ AND CLEAN FLAT MIDRANGE UP TO 2.5KHZ AND HANDLES 260 WATTS PROGRAM! |
|
|
|
HWB200-4 - 4 Ohms
Item Price: $145.95 |
|
SPEAKER
MODEL |
HWB200-4 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
8" |
|
Impedance |
4 ohms |
|
AES Power Rating |
130 Watts |
| Program Power | 260 Watts |
|
Frequency Response |
30Hz - 2.5kHz |
|
Sensitivity (1W/1m) |
92.5dB SPL |
|
Voice Coil Diameter |
1.5" / 38mm |
| Gap Height | .32' / 8mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 8.82" / 224mm |
| Bolt Circle Diameter | 8.27" / 210mm |
| Baffle Cutout Diameter | 7.24" / 184mm |
| Depth | 3.43" / 87mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | .22" / 5.5mm |
| Flange Thickness | 7.5mm |
| Magnet Diameter | 4.72" / 120mm |
| Net Weight | 6.2 lbs./ 2.82 kg. |
| Shipping Weight | 6.6 lbs./ 3.0 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Treated Paper |
| Cone Shape | Exponential |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Voice Coil | Copper |
| Spider | Nomex |
| Former | Kapton |
| Connector Type | Faston |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
32 Hz |
|
Impedance
(Re) |
3.4 ohms |
| Electrical Factor(Qes) | .39 |
| Mechanical Q (Qms) | 10.2 |
| Total Q (Qts) | .38 |
| Compliance Equiv. Vol. (Vas) | 57 Liters/2.03 cu. ft. |
| Voice Coil Overhang (Xmax) | 7.0mm |
| BL Factor | 5.6 T-M |
| Diaphragm Mass (Mms) | 30 grams |
| Surface Area of Cone (Sd)m2 | 0.022m2 |
| Reference Efficiency (%) | 0.48% |
| Coil Inductance (Le) | .62mH |

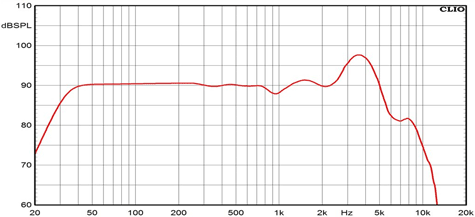

| FREQUENCY RESPONSE GRAPH | |
 |
|

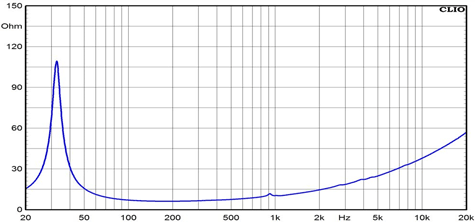

| IMPEDANCE CURVE | |
 |
|

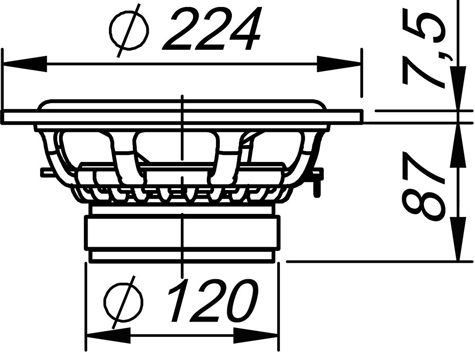

| DIMENSIONAL DRAWING | |
 |
|
