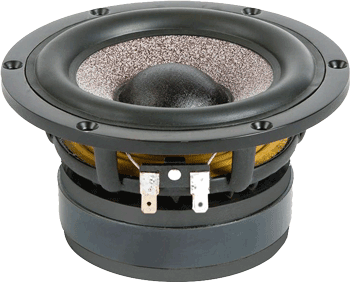

HWG130-4 - POWERFUL 5" SPEAKER - 4 OHMS
|
|
|
HWG130-4 - POWERFUL 5" SPEAKER - 4 OHMS |
|
THE CIARE HWG130-4 HAS POWERFUL DEEP BASS DOWN TO 40HZ AND CLEAN FLAT MIDRANGE UP TO 6KHZ AND HANDLES 260 WATTS PROGRAM! |
|
|
|
HWG130-4 - 4 Ohms
Item Price: $154.79 |
|
SPEAKER
MODEL |
HWG130-4 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
5" |
|
Impedance |
4 ohms |
|
AES Power Rating |
130 Watts |
| Program Power | 260 Watts |
|
Frequency Response |
40Hz - 6kHz |
|
Sensitivity (1W/1m) |
90.5dB SPL |
|
Voice Coil Diameter |
1.5" / 38mm |
| Gap Height | .32' / 8mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 5.7" / 146mm |
| Bolt Circle Diameter | 5.33" / 135.5mm |
| Baffle Cutout Diameter | 4.61" / 117mm |
| Depth | 2.8" / 71mm |
| No. Of Mounting Holes | 6 |
| Mounting Hole Diameter | .18" / 4.5mm |
| Flange Thickness | 6.0mm |
| Magnet Diameter | 4.02" / 102mm |
| Net Weight | 3.8 lbs./ 1.73 kg. |
| Shipping Weight | 4.2 lbs./ 1.91 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Treated Paper w/ Glass Sphere |
| Cone Shape | Exponential |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Voice Coil | Aluminum |
| Spider | Fabric |
| Former | Kapton |
| Connector Type | Faston |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
40 Hz |
|
Impedance
(Re) |
2.7 ohms |
| Electrical Factor(Qes) | .36 |
| Mechanical Q (Qms) | 4.8 |
| Total Q (Qts) | .34 |
| Compliance Equiv. Vol. (Vas) | 12.5 Liters/.44 cu. ft. |
| Voice Coil Overhang (Xmax) | 6.5mm |
| BL Factor | 5 T-M |
| Diaphragm Mass (Mms) | 12.8 grams |
| Surface Area of Cone (Sd)m2 | 0.0095m2 |
| Reference Efficiency (%) | 0.27% |
| Coil Inductance (Le) | .6mH |

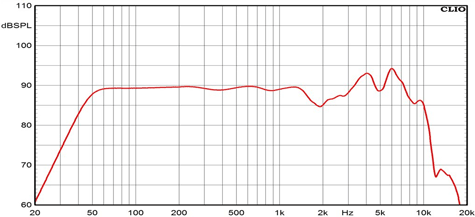

| FREQUENCY RESPONSE GRAPH | |
 |
|

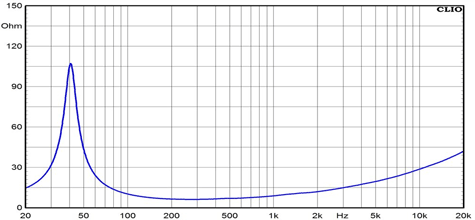

| IMPEDANCE CURVE | |
 |
|

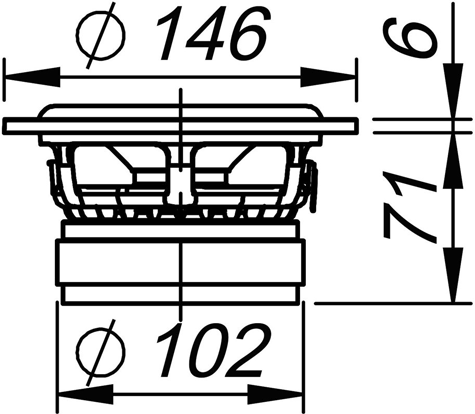

| DIMENSIONAL DRAWING | |
 |
|
