HWG160-8 - POWERFUL 6.5" SPEAKER - 8 OHMS
|
|
|
HWG160-8 - POWERFUL 6.5" SPEAKER - 8 OHMS |
|
THE CIARE HWG160-8 HAS POWERFUL DEEP BASS DOWN TO 40HZ WITH GOOD MIDRANGE UP TO 1.5KHZ AND HANDLES 260 WATTS PROGRAM! |
|
|
|
HWG160-8 - 8 Ohms
Item Price: $174.89 |
|
SPEAKER
MODEL |
HWG160-8 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
6.5" |
|
Impedance |
8 ohms |
|
AES Power Rating |
130 Watts |
| Program Power | 260 Watts |
|
Frequency Response |
39Hz - 1.5kHz |
|
Sensitivity (1W/1m) |
91dB SPL |
|
Voice Coil Diameter |
1.5" / 38mm |
| Gap Height | .32' / 8mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 6.85" / 174mm |
| Bolt Circle Diameter | 6.46" / 164mm |
| Baffle Cutout Diameter | 5.75" / 146mm |
| Depth | 3.03" / 77mm |
| No. Of Mounting Holes | 6 |
| Mounting Hole Diameter | .18" / 4.5mm |
| Flange Thickness | 6.0mm |
| Magnet Diameter | 4.72" / 120mm |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Treated Paper w/ Glass Sphere |
| Cone Shape | Exponential |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Voice Coil | Aluminum |
| Spider | Fabric |
| Former | Kapton |
| Connector Type | Faston |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
39 Hz |
|
Impedance
(Re) |
5.4 ohms |
| Electrical Factor(Qes) | .28 |
| Mechanical Q (Qms) | 4.9 |
| Total Q (Qts) | .27 |
| Compliance Equiv. Vol. (Vas) | 27 Liters/.95 cu. ft. |
| Voice Coil Overhang (Xmax) | 6.5mm |
| BL Factor | 8.9 T-M |
| Diaphragm Mass (Mms) | 16.2 grams |
| Surface Area of Cone (Sd)m2 | 0.0136m2 |
| Reference Efficiency (%) | 0.6% |
| Coil Inductance (Le) | 1.4mH |

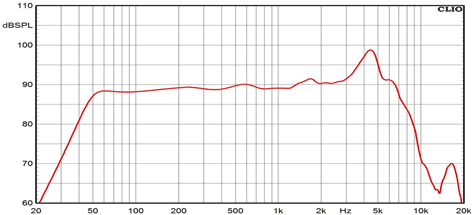

| FREQUENCY RESPONSE GRAPH | |
 |
|
| IMPEDANCE CURVE | |
 |
|
| DIMENSIONAL DRAWING | |
 |
|
