• NEW GENERATION V-SHAPE CIARE PR614 1.4" EXIT HORN WITH A 60° HORIZONTAL x 40° VERTICAL DISPERSION
• CONSTANT DIRECTIVITY ON A HORIZONTAL PLANE & HYPERBOLIC ON A VERTICAL PLANE
• BEST ACOUSTIC PERFORMANCE MATHEMATICALLY ON A VERTICAL PLANE
• NEW DESIGN HAS LESS COLORATIONS AND REFLECTIONS
• FEATURES A STRONG CAST ALUMINUM HORN WITH EXTENSIVE BRACING ON THE BACKSIDE
• WIDE FREQUENCY RANGE FROM 500HZ TO 20KHZ

HORN MODEL	PR614
SPECIFICATIONS
Type	Horn
Throat Diameter	1.4"
Dispersion	60°H x 40°V
Frequency Range	500Hz - 20kHz
Minimum Crossover Frequency	800Hz
Directivity Index	8.4dB
MATERIALS
Material	Cast Aluminum
Finish	Black Sandblasted
Horizontal Type Progression	Constant Directivity
Vertical Type Progression	Hyperbolic Cosine
MOUNTING INFORMATION
Overall Width	13" / 330mm
Overall Height	8.27" / 210mm
Depth	7.56" / 192mm
No. Of Front Mounting Holes	6
Front Mounting Hole Diameter	.26" / 6.5mm
Front Of Horn Thickness	.43" / 11mm
Back Flange Thickness (Mounting To HF Driver)	.28" / 7mm
Mounting Type	Bolt On
4 Holes Equally Spaced On Dia.	4"  /  101mm
Net Weight	4.19 lbs./ 1.9 kg
HORIZONTAL DIRECTIVITY

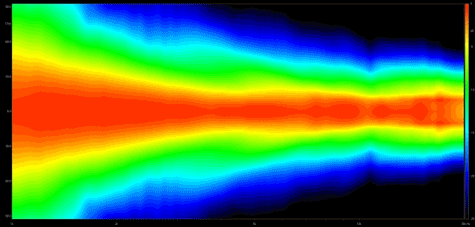

VERTICAL DIRECTIVITY

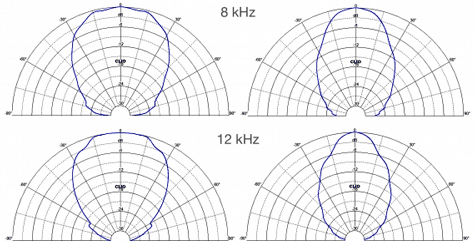

POLAR PATTERN

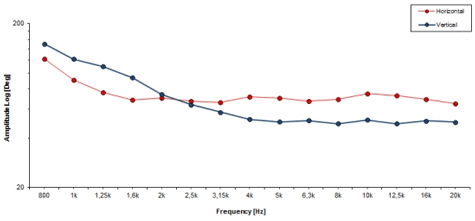

BEAMWIDTH

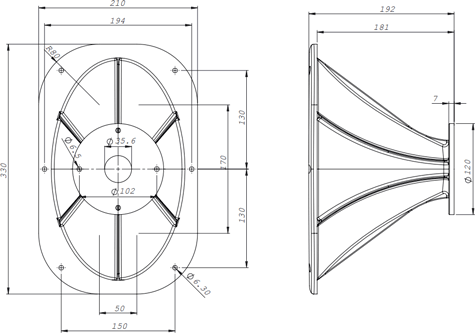

MOUNTING DIMENSIONS
