HW205 - HIGH QUALITY 8" MID-BASS / BASS SPEAKER

THE CIARE HW205 BASS IS DEEP & TIGHT AND THE MIDRANGE IS VERY CLEAN & DETAILED SOUNDING WITH 200 WATTS AES POWER HANDLING!

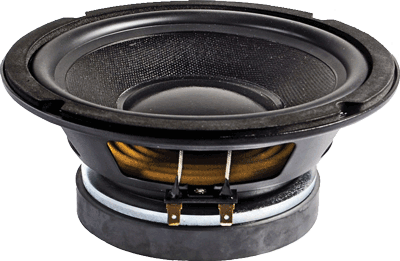

Ciare HW205

Item Price: $134.95
SPEAKER CABINET DESIGNS BELOW

SPEAKER MODEL

HW205

SPECIFICATIONS

Nominal Basket Diameter

8" / 200mm

Impedance

8 ohms

AES Power Rating

200 Watts
Program Power 400 Watts

Frequency Response

35Hz - 5kHz

Sensitivity (1W/1m)

91dB SPL
Air Gap Height .31" / 8mm

Voice Coil Diameter

2" / 50mm

MOUNTING INFORMATION
Overall Diameter 8.25" / 209.5mm
Bolt Circle Diameter 7.81" / 198.5mm
Baffle Cutout Diameter 7.16" / 182mm
Depth 3.98" / 101mm
No. Of Mounting Holes 4
Mounting Hole Diameter .197" / 5mm
Flange Thickness .33" / 8.5mm
Shipping Weight 7.26 lbs./ 3.3 kg.

MATERIALS
Basket Steel
Cone Doped Paper
Surround Rubber
Surround Shape Half Roll
Former Kapton
Magnet Ferrite

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

 46.7 Hz
Impedance (Re) 5.99 ohms
Electrical Factor(Qes) .45
Mechanical Q (Qms) 6.14
Total Q (Qts) .42
Compliance Equiv. Vol. (Vas) 25.93 Liters/.92 cu. ft.
Voice Coil Overhang (Xmax) 6.0mm
BL Factor 10.05 T-M
Diaphragm Mass (Mms) 26.05 grams
Surface Area of Cone (Sd)m2 0.022m2
Reference Efficiency (%) .56%
Coil Inductance (Le) .14mH

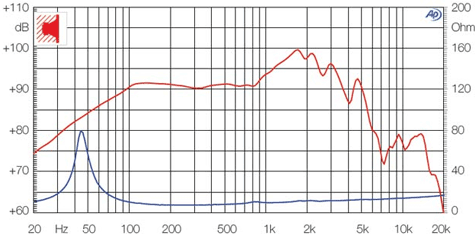

FREQUENCY RESPONSE GRAPH
Ciare HW205 Frequency

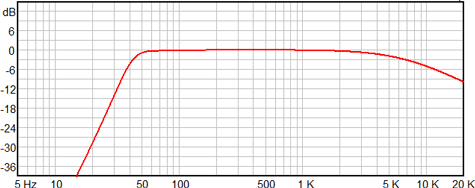

FREQUENCY RESPONSE IN MEDIUM PORTED CABINET
Ciare HW205 Frequency

  • Enclosure Type - Single Bass Reflex/Ported - 1 x 8"

  • Internal Cabinet Volume - 1.2 cu. ft.

  • Internal Cabinet Dimensions: 7.5" Wide x 20" Height x 10.375" Deep

  • Tuning - 45Hz

  • Frequency @ -3dB - 45.9Hz

  • Round Port - (1) 4"

  • Port Depth - 12.5" Deep

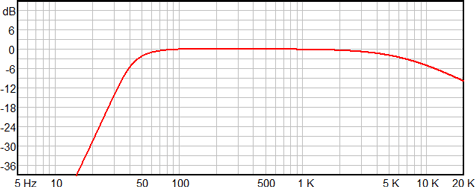

FREQUENCY RESPONSE IN LARGE PORTED CABINET
Ciare HW205 Frequency

  • Enclosure Type - Single Bass Reflex/Ported - 1 x 8"

  • Internal Cabinet Volume - 1.5 cu. ft.

  • Internal Cabinet Dimensions: 10" Wide x 20" Height x 13" Deep

  • Tuning - 45Hz

  • Frequency @ -3dB - 41.76Hz

  • Round Port - (1) 4"

  • Port Depth - 8.55" Deep
FREQUENCY RESPONSE IN LARGE PORTED CABINET
Ciare HW205 Frequency

  • Enclosure Type - Dual Bass Reflex/Ported - 2 x 8"

  • Internal Cabinet Volume - 2.5 cu. ft.

  • Internal Cabinet Dimensions: 10" Wide x 29" Height x 15" Deep

  • Tuning - 45Hz

  • Frequency @ -3dB - 42.53Hz

  • Round Ports - (2) 4"

  • Port Depth - 10.75" Deep

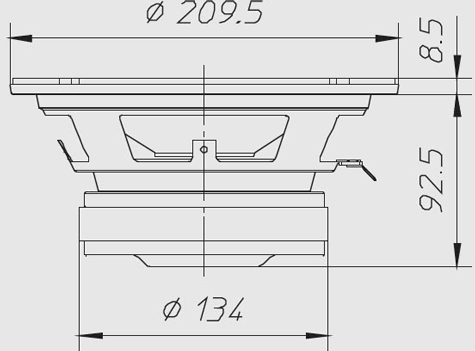

DIMENSIONAL DRAWING
Ciare HW205 Drawing
