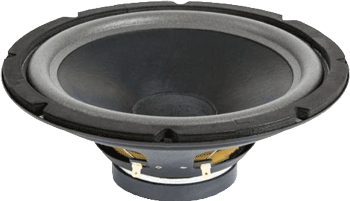

HW250 - HIGH QUALITY 10" MID-BASS / BASS SPEAKER
|
|
|
HW250 - HIGH QUALITY 10" MID-BASS / BASS SPEAKER |
|
THE CIARE HW250 DELIVERS A VERY DEEP NATURAL BASS SOUND WITH CLEAN ARTICULATE MIDS & GOOD POWER HANDLING OF 90 WATTS AES! |
|
|
|
Item Price: $129.95 Temporarily Backordered |
|
SPEAKER MODEL |
HW250 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
10" |
|
Impedance |
8 ohms |
|
AES Power Rating |
90 Watts |
| Program Power | 180 Watts |
|
Frequency Response |
20Hz - 3.0kHz |
|
Sensitivity (1W/1m) |
90dB SPL |
|
Voice Coil Diameter |
1.26" / 32mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 10.43" / 265mm |
| Bolt Circle Diameter | 9.96" / 253mm |
| Baffle Cutout Diameter | 9.37" / 238mm |
| Depth | 4.02" / 102mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | .24" / 6mm |
| Flange Thickness | .35" / 9mm |
| Net Weight | 3.96 lbs./ 1.8 kg. |
|
MATERIALS |
|
| Basket | Steel |
| Cone | Paper |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Suspension Material | Polyurethane |
| Former | Aluminum |
| Magnet | Ferrite |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
23 Hz |
|
Impedance
(Re) |
6.0 ohms |
| Electrical Factor(Qes) | .58 |
| Mechanical Q (Qms) | 3.0 |
| Total Q (Qts) | .48 |
| Compliance Equiv. Vol. (Vas) | 275 Liters/9.71 cu. ft. |
| Voice Coil Overhang (Xmax) | 5.5mm |
| BL Factor | 6.55 T-M |
| Diaphragm Mass (Mms) | 29 grams |
| Surface Area of Cone (Sd)m2 | 0.0346m2 |
| Reference Efficiency (%) | .55% |
| Coil Inductance (Le) | .6mH |

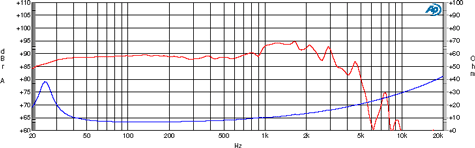

| FREQUENCY RESPONSE | |
 |
|

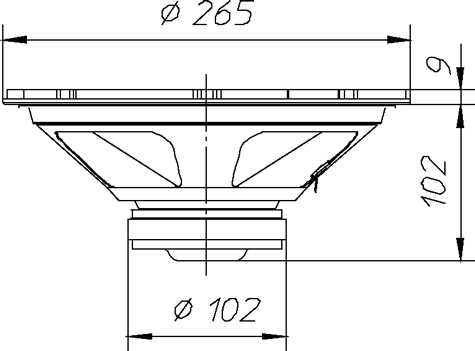

| DIMENSIONAL DRAWING | |
|
|
|

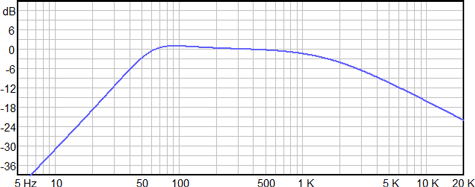

| FREQUENCY RESPONSE IN 1.5 CU.FT. SEALED CABINET | |
 |
|

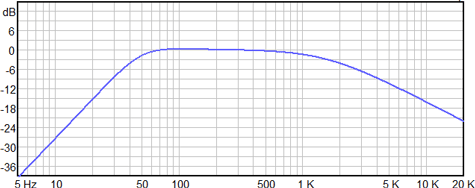

| FREQUENCY RESPONSE IN 2.5 CU.FT. SEALED CABINET | |
 |
|

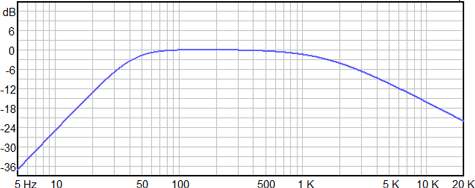

| FREQUENCY RESPONSE IN 3.7 CU.FT. SEALED CABINET | |
 |
|
