DDS CFD 1-70 PRO - 1" 80°x 70° HORN |
|
|
|
DDS CFD 1-70 PRO - 1" 80°x 70° HORN |
|
QUALITY 1" FIBERGLASS HORN MATCHES WELL WITH A 12" WOOFER! |
|
|
|
No Longer Available |
|
HORN
MODEL |
CFD 1-70PRO |
|
SPECIFICATIONS |
|
|
Type |
Constant
Directivity |
|
Throat
Size |
1" / 25mm |
|
Dispersion |
80°H x 70°V |
| Sensitivity | 110.1dB (+5.1dB nominal gain) |
|
Frequency Response |
800Hz - 18kHz |
| Directivity Factor | 9.1 |
| Volume Displacement | .02 cu. ft. |
| Construction | Biaxial Stitched Fiberglass |
| Dampening Material | 3/8" Thick End Grain Balsa Wood |
|
Net Weight |
2.5
lbs. |
|
MOUNTING INFORMATION |
|
|
Overall
Width |
11.5" / 292mm |
| Overall Height | 7" / 178mm |
| Overall Depth | 4.625" / 117mm |
| Cutout Width | 9.5" / 241.3mm |
| Cutout Height | 5.0" / 127mm |
| Mounting Type | Bolt On |
| 2 Holes Equally Spaced On Diameter | 3.3" / 84.1 mm |
| 3 Holes Equally Spaced On Diameter | 2.24" / 57 mm |
|

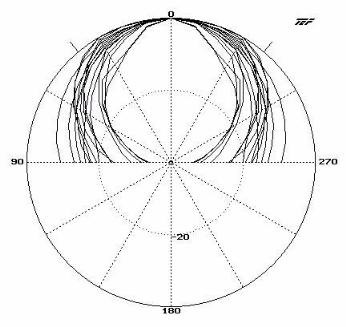

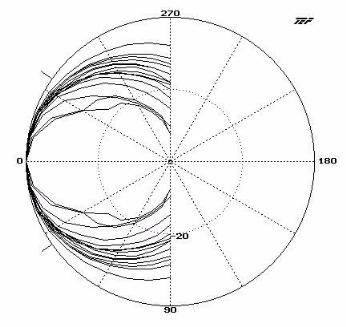

HORIZONTAL & VERTICAL POLAR RESPONSE |
|
630 Hz - 16kHz, 1/3 Octave Center Frequencies |
|
|
|
|
