DDS CFD 2-60A PRO - 2" 60°x 40° HORN |
|
|
|
DDS CFD 2-60A PRO - 2" 60°x 40° HORN |
|
THIS 2" HORN WILL OUTPERFORM JUST ABOUT ANY HORN IN ITS' SIZE! |
|
|
|
No Longer Available |
|
HORN
MODEL |
CFD 2-60A PRO |
|
SPECIFICATIONS |
|
|
Type |
Constant
Directivity |
|
Throat
Size |
2"
/ 50mm |
|
Dispersion |
60°H x 40°V |
| Sensitivity | 113.9dB (+5.9dB nominal gain) |
|
Frequency Response |
1kHz - 18kHz |
| Directivity Factor | 15.7 |
| Volume Displacement | .14 cu. ft. |
| Construction | Biaxial Stitched Fiberglass |
| Dampening Material | 3/8" Thick End Grain Balsa Wood |
|
Net Weight |
4.5
lbs. |
|
MOUNTING INFORMATION |
|
|
Overall
Width |
14.5" / 368mm |
| Overall Height | 10" / 254mm |
| Overall Depth | 10.125" / 257.2mm |
| Cutout Width | 12.5" / 317.5mm |
| Cutout Height | 8" / 203.2mm |
| Mounting Type | Bolt On |
| 4 Holes Equally Spaced On Diameter | 4" / 101 mm |
|

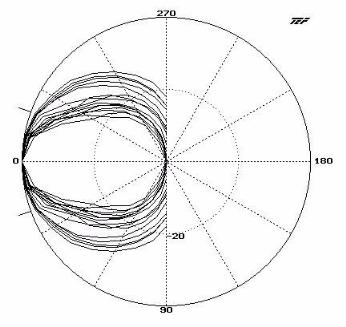

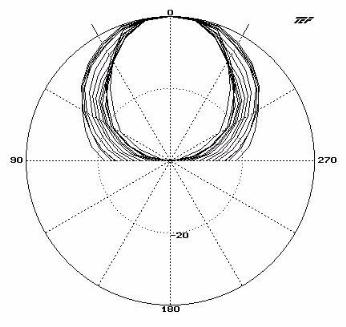

HORIZONTAL & VERTICAL POLAR RESPONSE |
|
630 Hz - 16kHz, 1/3 Octave Center Frequencies |
|
|
|
|
