DDS CFD 2-60X PRO - 2" 60°x 40° HORN |
|
|
|
DDS CFD 2-60X PRO - 2" 60°x 40° HORN |
|
THIS LARGE FORMAT 2" HORN DELIVERS A VERY PRECISE WARM SOUND! |
|
|
|
No Longer Available |
|
HORN
MODEL |
CFD 2-60X PRO |
|
SPECIFICATIONS |
|
|
Type |
Constant
Directivity |
|
Throat
Size |
2"
/ 50mm |
|
Dispersion |
60°H x 40°V |
| Sensitivity | 117.9dB (+7.9dB nominal gain) |
|
Frequency Response |
500Hz - 18kHz |
| Directivity Factor | 22 |
| Volume Displacement | .4 cu. ft. |
| Construction | Biaxial Stitched Fiberglass |
| Dampening Material | 3/8" Thick End Grain Balsa Wood |
|
Net Weight |
6.0
lbs. |
|
MOUNTING INFORMATION |
|
|
Overall
Width |
21" / 533.4mm |
| Overall Height | 18.5" / 470mm |
| Overall Depth | 14" / 356mm |
| Cutout Width | 19" / 482.6mm |
| Cutout Height | 16.5" / 419mm |
| Mounting Type | Bolt On |
| 4 Holes Equally Spaced On Diameter | 4" / 101 mm |
|

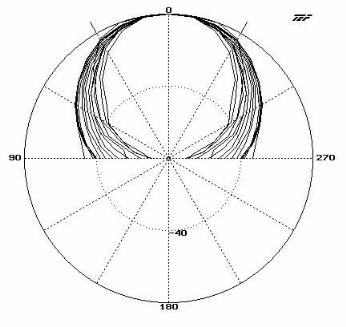

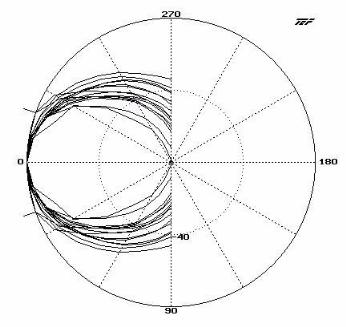

HORIZONTAL & VERTICAL POLAR RESPONSE |
|
630 Hz - 16kHz, 1/3 Octave Center Frequencies |
|
|
|
|
