DDS CFD 2-90A PRO - 2" 90°x 40° HORN |
|
|
|
DDS CFD 2-90A PRO - 2" 90°x 40° HORN |
|
THIS 2" HORN WILL OUTPERFORM JUST ABOUT ANY HORN IN ITS' SIZE! |
|
|
|
No Longer Available |
|
HORN
MODEL |
CFD 2-90A PRO |
|
SPECIFICATIONS |
|
|
Type |
Constant
Directivity |
|
Throat
Size |
2"
/ 50mm |
|
Dispersion |
90°H x 40°V |
| Sensitivity | 112.8dB (+4.8dB nominal gain) |
|
Frequency Response |
1kHz - 18kHz |
| Directivity Factor | 10.7 |
| Volume Displacement | .13 cu. ft. |
| Construction | Biaxial Stitched Fiberglass |
| Dampening Material | 3/8" Thick End Grain Balsa Wood |
|
Net Weight |
4.0
lbs. |
|
MOUNTING INFORMATION |
|
|
Overall
Width |
14.5" / 368mm |
| Overall Height | 10" / 254mm |
| Overall Depth | 7.75" / 197mm |
| Cutout Width | 12.5" / 317.5mm |
| Cutout Height | 8" / 203.2mm |
| Mounting Type | Bolt On |
| 4 Holes Equally Spaced On Diameter | 4" / 101 mm |
|

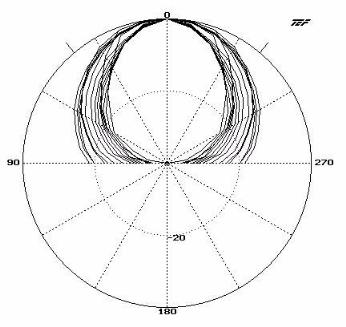

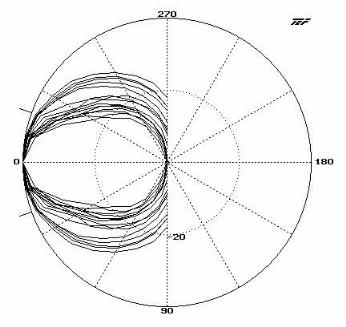

HORIZONTAL & VERTICAL POLAR RESPONSE |
|
630 Hz - 16kHz, 1/3 Octave Center Frequencies |
|
|
|
|
US Speaker, LLC
