DDS CFD 2-90X PRO - 2" 90°x 40° HORN |
|
|
|
DDS CFD 2-90X PRO - 2" 90°x 40° HORN |
|
THIS LARGE FORMAT 2" HORN DELIVERS A VERY BIG & SMOOTH SOUND! |
|
|
|
No Longer Available |
|
HORN
MODEL |
CFD 2-90X PRO |
|
SPECIFICATIONS |
|
|
Type |
Constant
Directivity |
|
Throat
Size |
2"
/ 50mm |
|
Dispersion |
90°H x 40°V |
| Sensitivity | 116.6dB (+7.9dB nominal gain) |
|
Frequency Response |
500Hz - 18kHz |
| Directivity Factor | 12.4 |
| Volume Displacement | .22 cu. ft. |
| Construction | Biaxial Stitched Fiberglass |
| Dampening Material | 3/8" Thick End Grain Balsa Wood |
|
Net Weight |
4.0
lbs. |
|
MOUNTING INFORMATION |
|
|
Overall
Width |
21" / 533.4mm |
| Overall Height | 14.5" / 368mm |
| Overall Depth | 9.5" / 241mm |
| Cutout Width | 19" / 482.6mm |
| Cutout Height | 12.5" / 317.5mm |
| Mounting Type | Bolt On |
| 4 Holes Equally Spaced On Diameter | 4" / 101 mm |
|

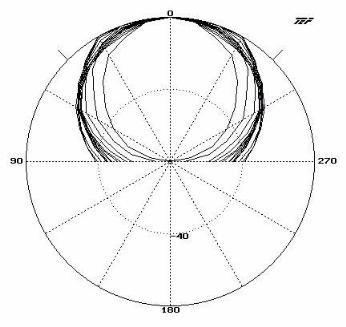

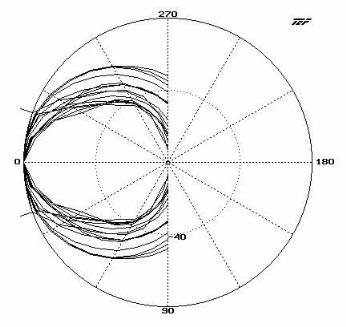

HORIZONTAL & VERTICAL POLAR RESPONSE |
|
630 Hz - 16kHz, 1/3 Octave Center Frequencies |
|
|
|
|
