DOUBLE-T12 - TAVIS TOY 12" PEDAL STEEL GUITAR SPEAKER
|
|
|
DOUBLE-T12 - TAVIS TOY 12" PEDAL STEEL GUITAR SPEAKER |
|
SIGNATURE TRAVIS TOY 12" PEDAL STEEL GUITAR SPEAKER HAS A TIGHT BASS, STRONG MIDS & WARM CLEAN HIGHS WITH 300 WATTS RMS POWER HANDLING! |
|
|
|
Item Price: $234.99 Free UPS Ground Shipping in the U.S. |
| SPEAKER MODEL | DOUBLE-T12 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
12" / 304.8mm |
|
Impedance |
8 ohms |
| RMS Power Rating | 300 Watts |
| Program Power Rating | 600 Watts |
| Usable Frequency Response | 50Hz - 3.8kHz |
|
Voice Coil Diameter |
3" / 76.2mm |
|
Sensitivity (1W/1m) |
100.2dB |
| Recommended Enclosure Volume (Sealed) | 22.65-62.3 liters/.8-2.2cu.ft. |
| Recommended Enclosure Volume (Vented) | 22.65-84.95 liters/.8-3.0cu.ft. |
| Air Gap Height | .36" / 9.1mm |
| Magnet Weight | 11 oz. |
| Net Weight | 7.1bs. /3.22kg. |
| Shipping Weight | 8.7lbs. /3.95kg. |
|
MOUNTING INFORMATION |
|
|
|
12.38" / 314.45mm |
| Bolt Circle Diameter |
11.62 |
| Baffle Cutout Diameter | 11.06" / 280.92mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.28" / 7.11mm |
| Overall Depth | 5.63" / 143mm |
|
MATERIALS |
|
| Cone | Paper |
| Voice Coil | Copper |
| Former | Polyimide |
| Core | Vented |
| Magnet | Neodymium |
| Basket | Die-cast Aluminum |
| Surround | Cloth |
| Dust Cap | Treated Paper |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 53Hz |
| Impedance (Re) | 5.6 ohms |
| Coil Inductance (Le) | 0.57mH |
| Electromagnetic Q (Qes) | .3 |
| Mechanical Q (Qms) | 19.59 |
| Total Q (Qts) | 0.3 |
| Compliance Equivalent Vol. (Vas) | 63.69 Liters/2.25cu. ft. |
| Voice Coil Overhang (Xmax) | 2.35mm |
| Surface Area of Cone (Sd) | .05195m2 |
| Diaphragm Mass (Mms) | 54 Grams |
| BL Product (BL) | 18.23 T-M |
| Peak Dia. Displacement Vol. (Vd) | 122.1cc |
|

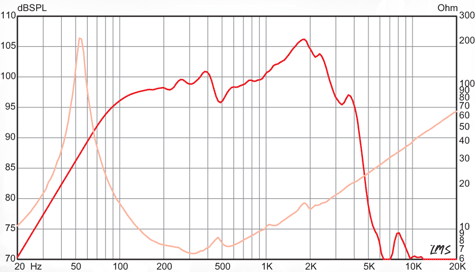

DOUBLE-T12 RESPONSE CURVE |
|
|
|
|
